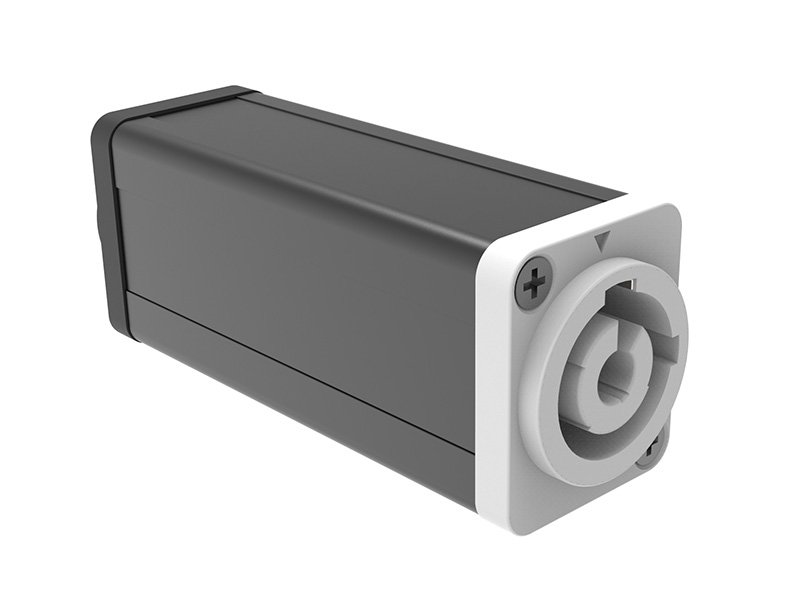

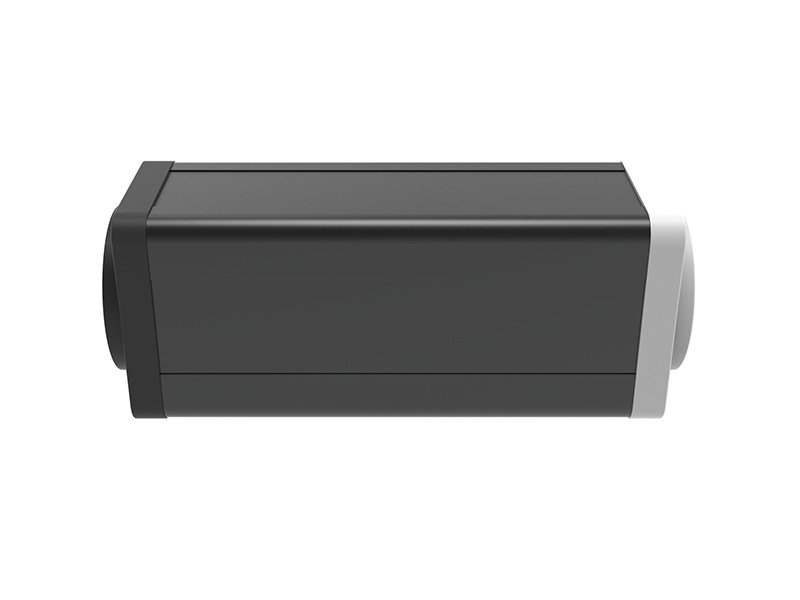

ADA42M PowerCON outlet grey to PowerCON TRUE1 male feedthrough Coupler
Application / Description
This powerCON grey to powerCON TRUE1 male adaptor is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact and powerCON TRUE1 male. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features
- Locking 20A / 250V AC appliance coupler
- Number of electronical contacts: 2 + PE
- 3 contacts for line, neutral and premating safety ground
- Power-out (grey) and powerCON TRUE1 male versions with different keying to avoid the possibility of intermating
- Aluminium alloy housing, black color
- 2.5mm2 power cable in the power adaptor
- Rated current: 30A
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
Specifications
| Model | ADA42 | ADA42F | ADA42M | ADA418M |
| Connector 1 | PowerCON blue | PowerCON blue | PowerCON Grey | 8 pole SpeakON male |
| Connector 2 | PowerCON Grey | powerCON TRUE1 female | PowerCON TRUE1 male | 8 pole SpeakON male |
| Shell | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Shell plating | Black | Black | Black | Black |
| Contact coating | Silver plated | Silver plated | Silver plated | Silver plated |
| Packaging | Plastic bag | Plastic bag | Plastic bag | Plastic bag |
| Outer Carton | 390*220*240(500pcs) | 390*220*240(500pcs) | 390*220*240(500pcs) | 390*220*240(500pcs) |
Packaging
- Plastic bag, paper box and blister packing are available;
- Special packaging on request.
