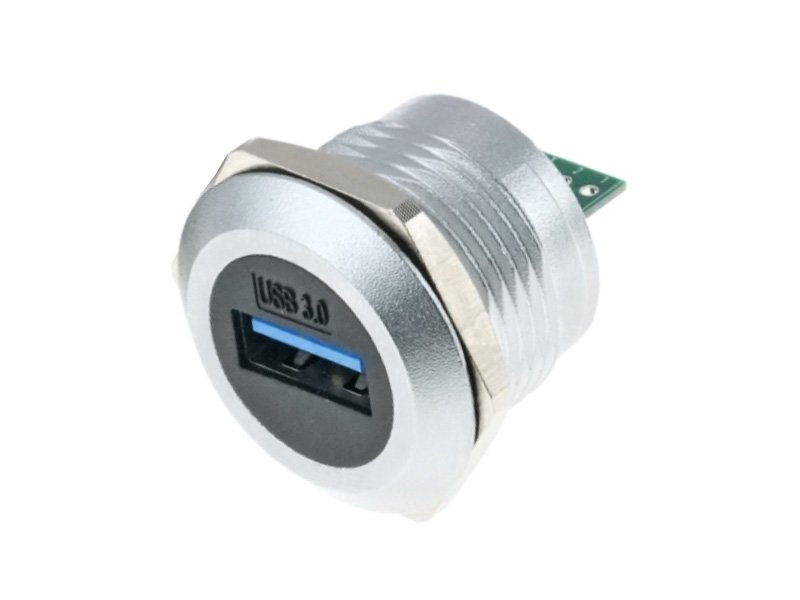

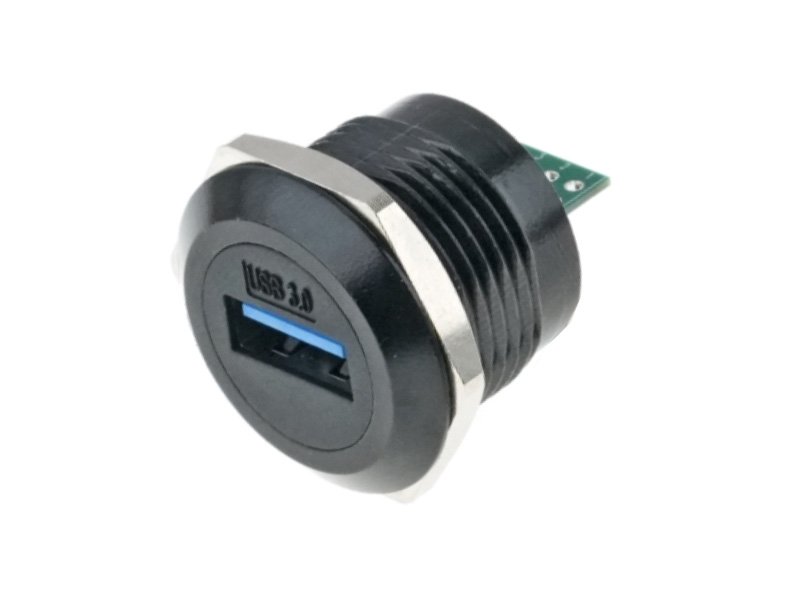

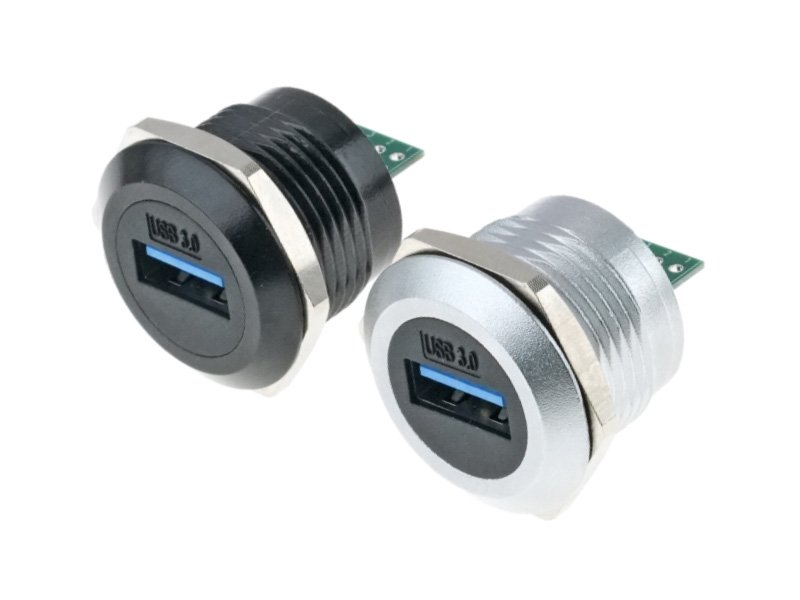

DAD28 USB 3.0 C-shape panel mounting chassis PCB terminal
Application / Description
This is a High quality USB 3.0 C-type panel mount connector PCB terminal used to solder your existing USB cable for a longer length. USB-A is the standard USB connector found on every computer.
Features
- USB 3.0 speed
- USB 3.0 Type-A female connector
- C-type panel mounting
- PCB terminal
- Easy installation without software driver required
- Power Rating: 2A / 30V
- USB Connections: Power + Data
- Nickel or Black plated housing
Specifications
| Model | DAD13 | DAD14 | DAD15 | DAD28 |
| Shape | Round | Round | D-type | Round |
| Type | USB 2.0 A coupler | USB 3.0 A coupler | USB 3.0 A coupler | USB 3.0 A chassis |
| Adapter | Female to Female | Female to Female | Female to Female | PCB terminal |
| Shell | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy |
| Shell plating | Nickel & Black | Nickel & Black | Nickel & Black | Nickel & Black |
| Contact | Nickle plated | Nickle plated | Nickle plated | Gold plated |
| Packaging | Plastic bag | Plastic bag | Plastic bag | Plastic bag |
Packaging
- Plastic bag, paper box and blister packing are available;
- Special packaging on request.
