The hybrid cable incorporates 1 PC power cable and 1 PC or 2 PCS or 4 PCS audio signal\DMX signal\ networking cable within the same jacket, and can supply power to devices while transmitting data.
Hybrid cables are available in different types, but most types are composed of parallel power transmission and signal, splicing with e.g. powerCON \ PowerCON TRUE1 and 3-pin XLR connectors \ 5-pin XLR connectors \ EtherCON.The power cable with both separatelly jacket and without jacket are available.

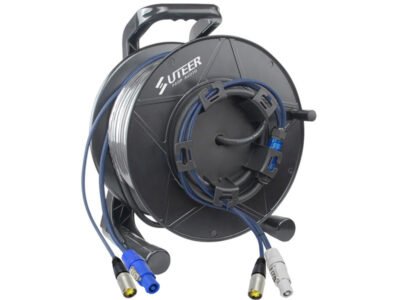

- PowerCON TRUE1 & EtherCON hybrid link cable, and PowerCON TRUE1 & EtherCON hybrid link cable on cable drum

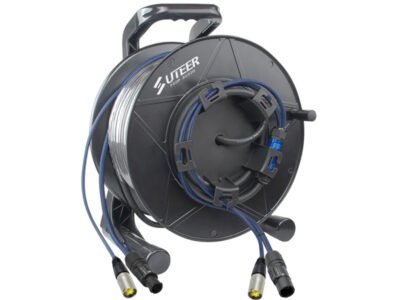

2. PowerCON & CAT6 Combination Cable and PowerCON & CAT6 Combination Cable Drum featuring high quality PowerCON TRUE1 / etherCON connectors and the ultra flexible Power & CAT6 Combination cable

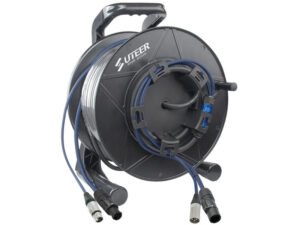

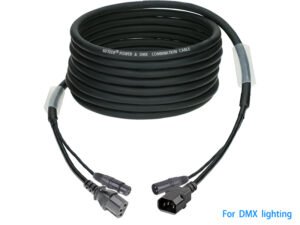

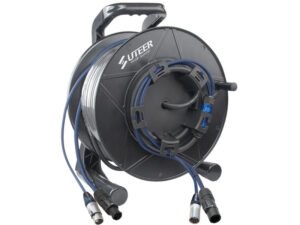

3. PowerCON TRUE1 & 3-pin DMX hybrid link cable, and PowerCON TRUE1 & 5-pin DMX hybrid link cable, and IEC & 3-pin DMX hybrid link cable, and PowerCON TRUE1 & 3-pin DMX hybrid link cable on cable drum.

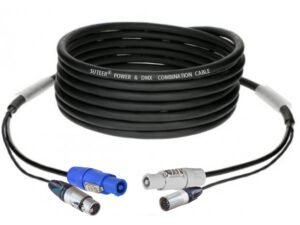

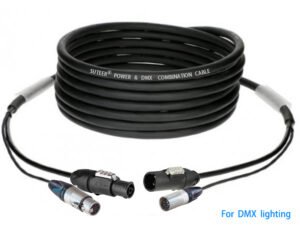

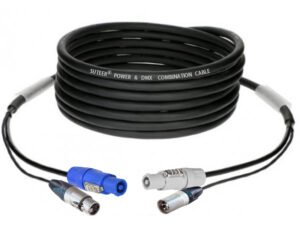

4. PowerCON 3×2.5mm2 & 3-pin XLR combination cable and Neutrik PowerCON 3×2.5mm2 & 5-pin XLR hybrid cable for DMX lighting

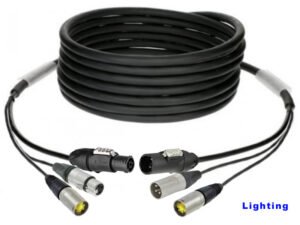

5. PowerCON TRUE1 & 3-pin DMX & EtherCON hybrid link cable

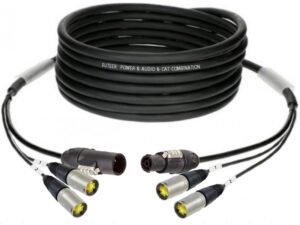

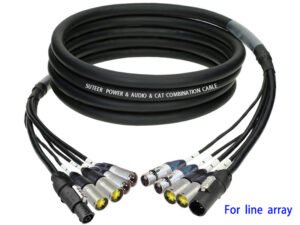

6. powerCON TRUE1 3×2.5mm2 & Audio & CAT.6 hybrid cable and 2x Audio & 2x CAT.6A & powerCON TRUE1 hybrid cable for line array
7. EtherCON & 3-pin DMX hybrid link cable.

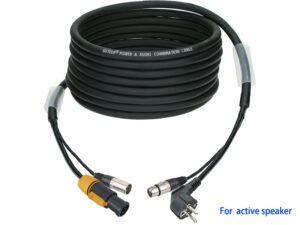

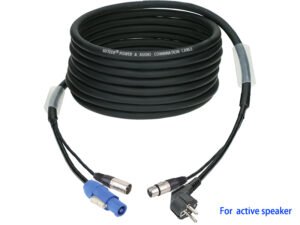

8. Combi Schuko Power+ XLR Female to IEC C13 + XLR Male Audio hybrid Cable for active speaker 、PowerCON & XLR-3P Audio combi cable for active speaker and powerCON TRUE1 & XLR-3P Audio hybrid cable for line array system.
Hybrid cables are widely used in surveillance systems, base stations, and other large-scale network deployments.
Hybrid cables come in various configurations depending on their intended use. Here are some common types:

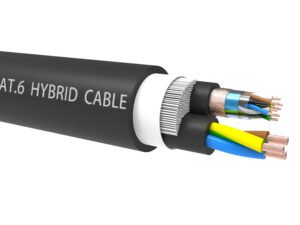

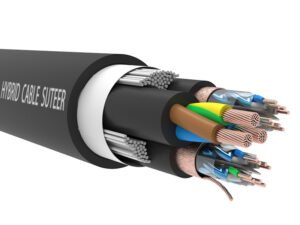

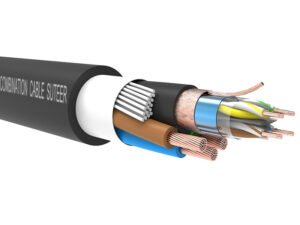

1. Combi Power and CAT Hybrid Cables:
Power & CAT hybrid cable has a broad range of uses as a connector cable for modern computer-controlled equipment. One or two flexible CAT6 conductors connect digital audio network components via Dante™, CobraNet® or EtherSound® or transmit DMX control signals based on ArtNet®, MA Net or Pathport protocols. The cable is also a convenient solution for applications in the IT sector requiring network connection plus power source.

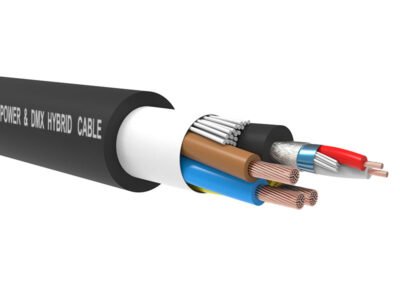

2. Combi Power and DMX Hybrid Cables:

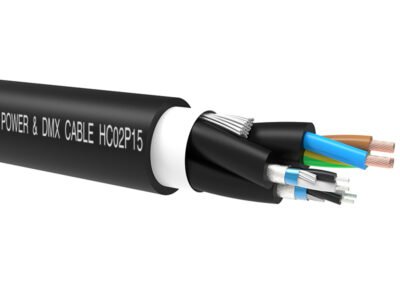

Power & DMX cable is hybrid cable with d shielded DMX cable and 1 power cable. Power cores with a separatelly jacket. Operational ranges are e.g. DMX-applications. DMX pair double screened and acc. to DMX and AES/EBU specifications.Suitable as patch cable as well as for the fixed installation. All cross sections for AES/EBU, 0,22qmm and 0,34qmm additional for DMX applications. Highest flexibility despite double screen.
3. Combi Power and DMX and CAT Hybrid Cables:

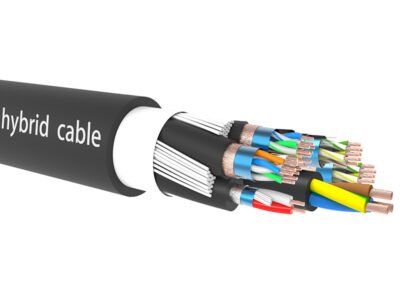

This hybrid cable power & CAT6 SFTP & DMX digital combination cable has a broad range of uses as a connector cable for modern computer-controlled equipment. One or two flexible CAT6.A conductors connect digital audio network components via Dante™, CobraNet® or EtherSound® or transmit DMX control signals based on ArtNet®, MA Net or Pathport protocols. The cable is also a convenient solution for applications in the IT sector requiring network connection plus power source.
4. Combi Audio and CAT Hybrid Cables:

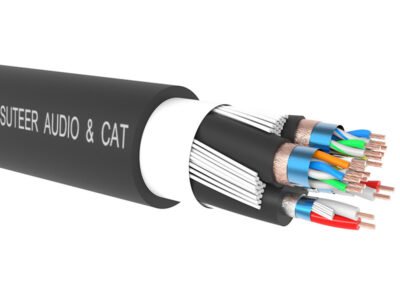

Audio & CAT6 combi cable is hybrid cable with double shielded audio signal cable / ethernet cable. to audio specifications. Suitable as patch cable as well as for the fixed installation.Highest flexibility despite double screen.
These combi cables allow you to run ethernet and audio together. Powered speaker cables allow you to combine audio and network inside one durable, yet flexible sleeve. Each cable combines power with 3-Pin XLR for audio and etherCON for digital. These cables are ideal for powered speakers、line array and are available in several different length options.

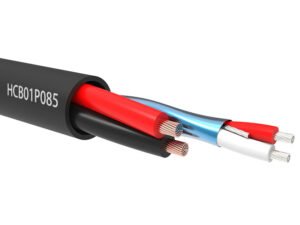

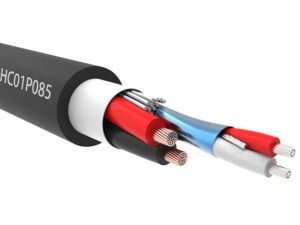

5. Combi Lower voltage power and DMX signal Hybrid Cables:
This is an DMX signal & Lower voltage power hybrid cable for digital AES/EBU. Analog audio signal transmission, for example, for controlling AMX controls in conference rooms or for building automation. By combining two pairs of conductors in a common flame-retardant PVC sheath, higher efficiency in the installation area can be ensured. The AL/PET foil shielding ( 100% coverage) is used to protect the data from the interference of the power cable.

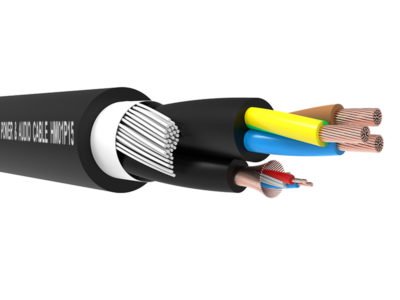

6. Combi Power and audio signal Hybrid Cables:
Power & audio cable is hybrid cable with 1 shielded microphone cable and 1 power cable. Power cores with a separatelly jacket. Operational ranges are e.g. PA system.Suitable for parallel power transmission and balanced audio signal, splicing with e.g. power and 3-pin XLR connectors.
The advantages of hybrid cables
Hybrid cables offer space-saving benefits, reduced installation time, and reduces the need for multiple separate cables, saving space and simplifying installation.
The hybrid cables can be used outdoors
It’s essential to choose hybrid cables with appropriate outdoor ratings, such as powerCON \ PowerCON TRUE1 \ EtherCON \ XLR with waterproof rubber cover.
You can buy all kinds of hybrid cable from suteer electronic co.,ltd.
