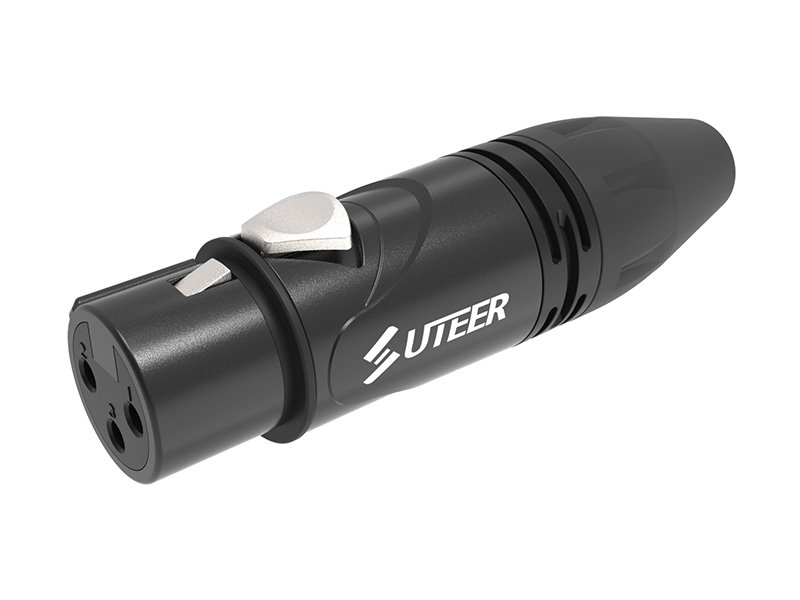

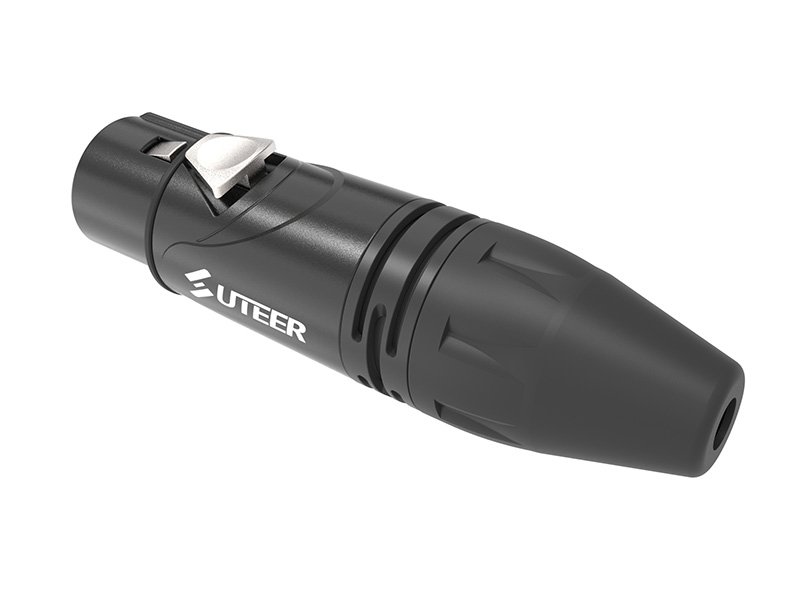

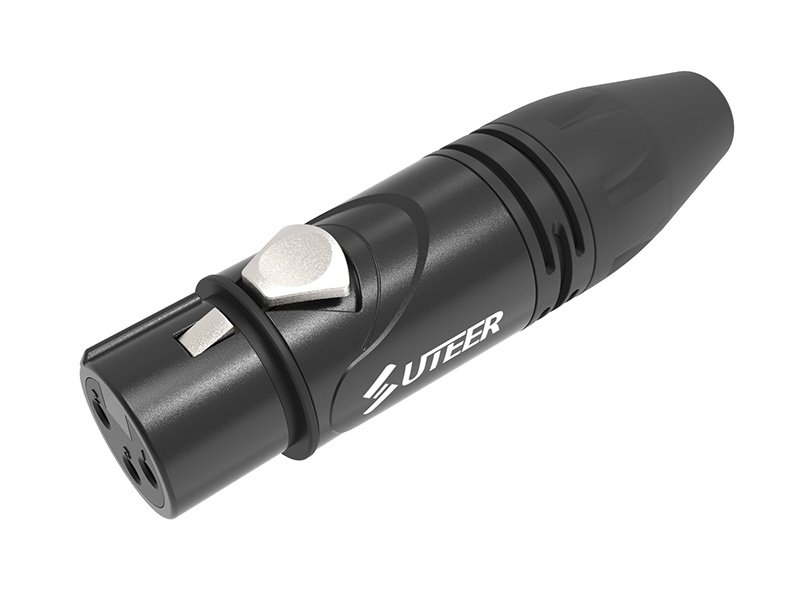

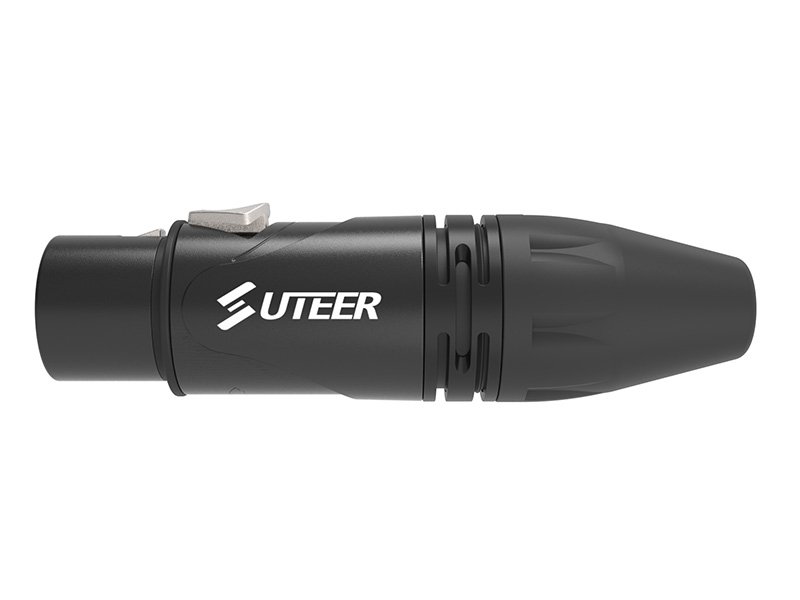

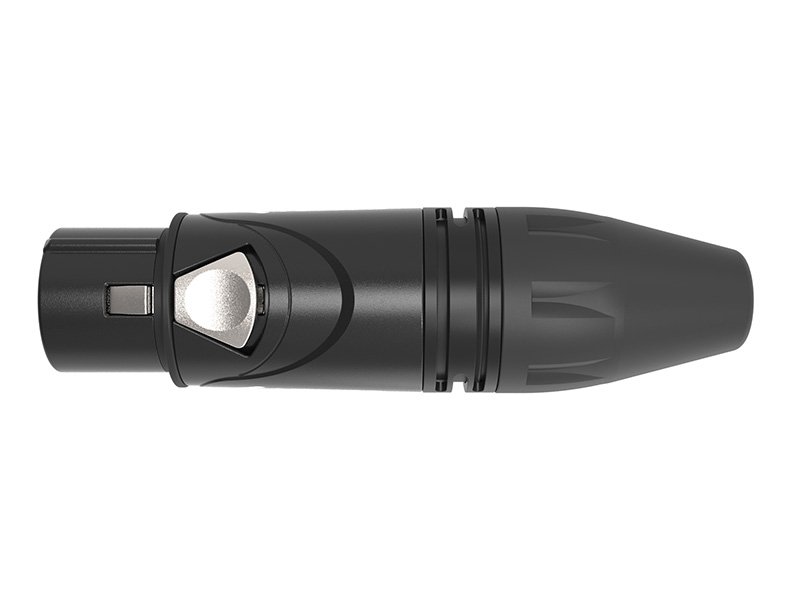

XLR3F019B Amphenol shape 3-pin XLR cable connector female – black
Application / Description
This is a similar Amphenol single female XLR connector with black plated housing used to transfer a balanced audio signal via 3 pins through an audio cable. Often used to terminate mic cables.
Features
- Similar Amphenol
- 3-pin Female connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with Polyvinyl chloride gland gives high protection to cable bending stresses

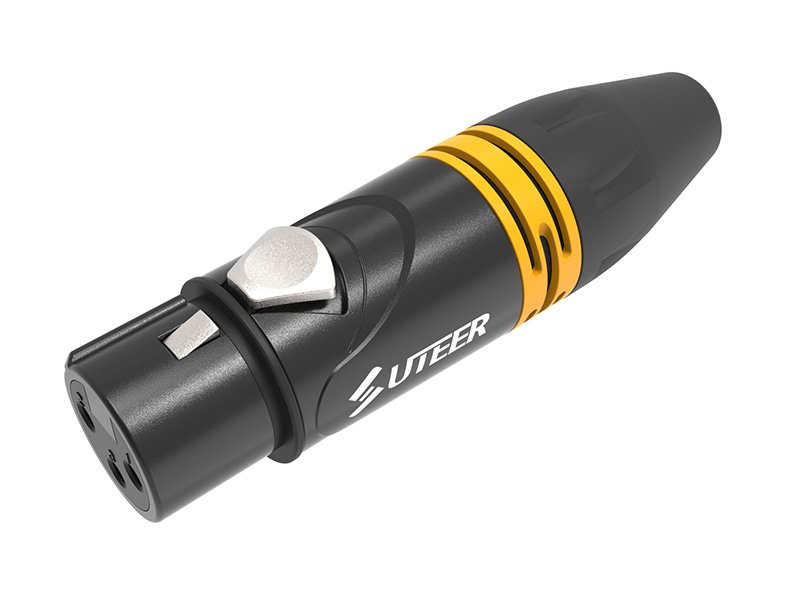

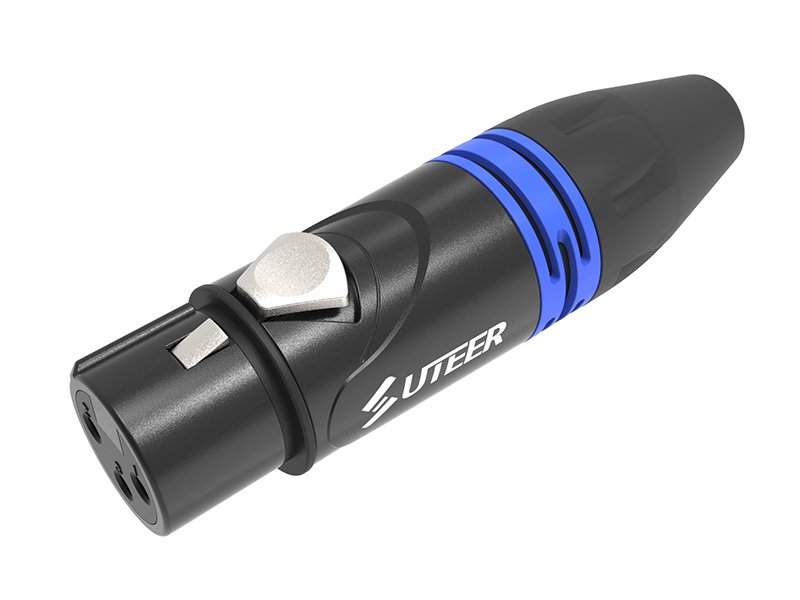

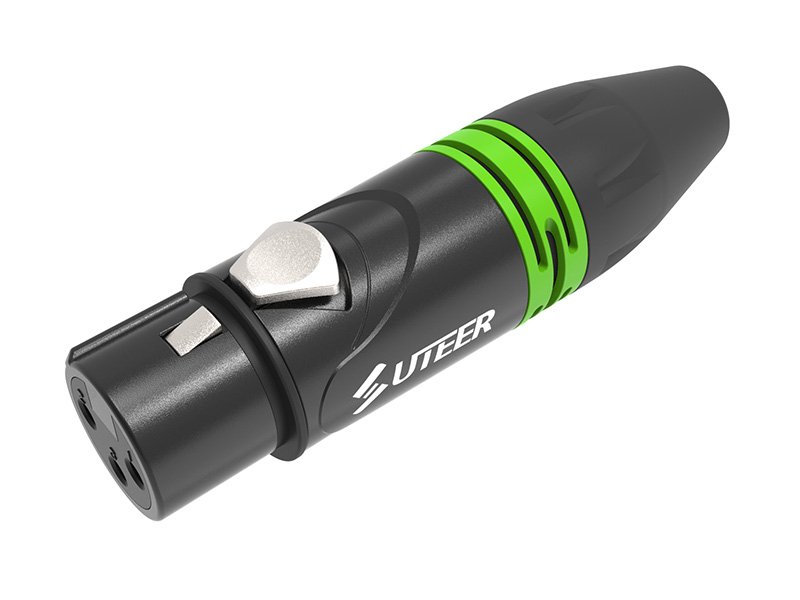

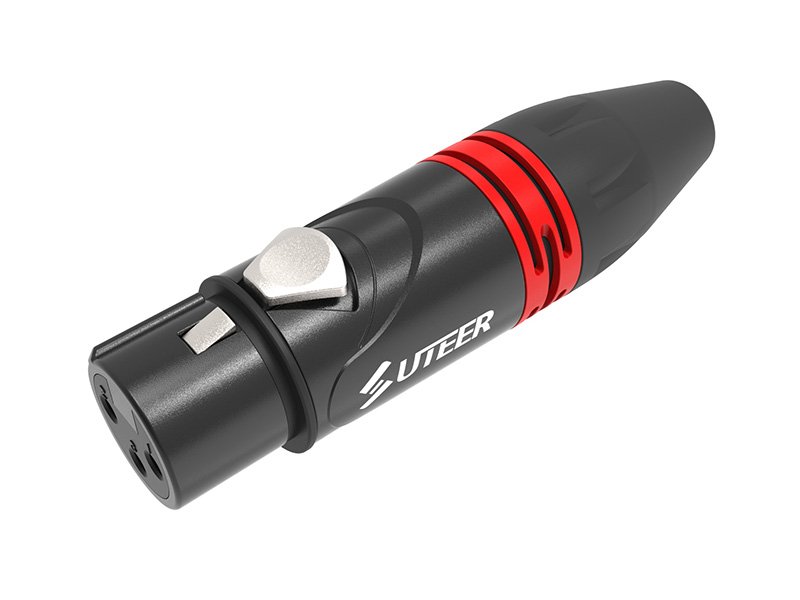

- Colored rings and boots available for coding or identification
- Rugged zinc diecast shell, long life and dependable
- Internal thread on shell is well protected against any damage
- Black plated housing
- Silver plated conntact
- RoHS Compliant
Specifications
| Model | XLR3F019 | XLR3M019 | XLR3F019B | XLR3M019B |
| type | 3 pole female XLR | 3 pole female XLR | 3 pole male XLR | 3 pole male XLR |
| Shell | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy |
| Shell plating | nickel plated | nickel plated | Black plated | Black plated |
| Contact coating | silver plated | silver plated | silver plated | silver plated |
| Pole number | 3 | 3 | 3 | 3 |
| Type of contact | Soldering | Soldering | Soldering | Soldering |
| Cable O.D | Ø4-Ø6.5 mm | Ø4-Ø6.5 mm | Ø4-Ø6.5 mm | Ø4-Ø6.5 mm |
| Packaging | Plastic bag | Plastic bag | Plastic bag | Plastic bag |
| Carton Packaging
Dimension (mm) |
390*220*240 (500 ps) | 390*220*240 (500 ps) | 390*220*240 (500 ps) | 390*220*240 (500 ps) |
Packaging
- Plastic bag, paper box and blister packing are available;
- Special packaging on request.
