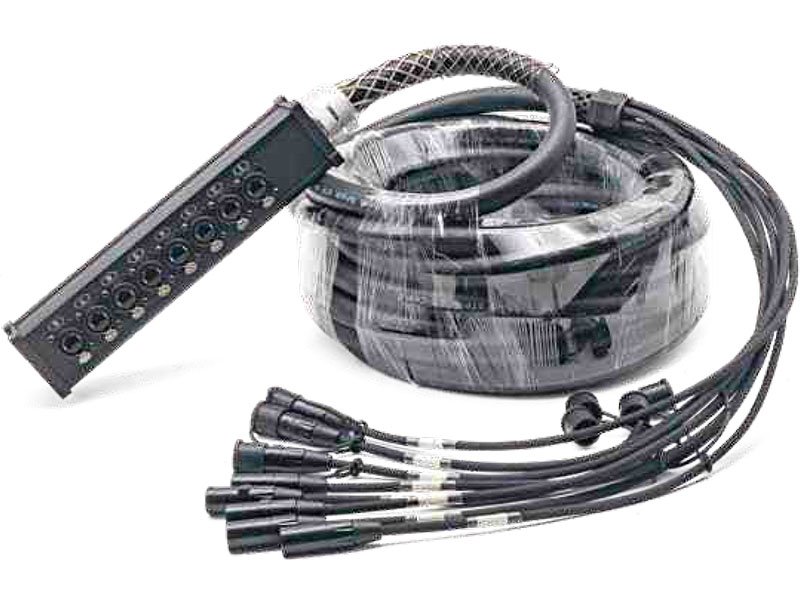

SBD608 8 channels Neutrik EtherCON CAT6 SFTP multicore stage box with rubber cover
SBD608 8 channels CAT6 SF/UTP multicore stage box with EtherCON and rubber cover for data transmission in installations and in protected mobile operation is designed for a frequency of 500 MHz and is therefore suitable for data transmission rates of up to 10 Gbit/s over up to 100 m link length. It is primarily used for data transmission in Ethernet applications with 1000Base-T and 10GBase-T. The four data lines with a characteristic impedance of 100 Ohm each have four stranded pairs with AWG 24/stranded 7/0.19mm conductors. Double shielding (SF/UTP) reliably prevents electromagnetic interference.
We use the metal EtherCON Cat6 connectors as suitable connectors. Features such as number marking of the individual cables、 Nylon braided sleeve\ moulded plastic splitter and EtherCON with rubber cover and D-shape EtherCON chassis connector.
- Flexible CAT6 long run cable SF/UTP,
- Conductor: Stranded 7/0.19mm, AWG24
- 10 GB Ethernet acc. to IEEE 802.3an
- Ruggedized EtherCON connector with rubber cover
- 8-fold multicore cable
- Moulded plastic splitter
- Numbered marking for identification
- Nylon braided sleeve
- Rugged metal stage box housing
- Metal Strain Relief on both fanout and box end
- Numbered XLR connectors for easy identification
- Easy pull handle on stage box
- Heavy-duty heat shrink over the entire length of fanout
- Cable management disk on fanout
Specifications
| Model | Channel | Socket | Connector | Cable Type | Length |
| SBD604 | 4 | 4 x EtherCON (D-shape) | 4 x EtherCON with rubber cover | MD406 | 10M 15M 20M 30M 50M |
| SBD606 | 6 | 6 x EtherCON (D-shape) | 4 x EtherCON with rubber cover | MD606 | 10M 15M 20M 30M 50M |
| SBD608 | 8 | 8 x EtherCON (D-shape) | 4 x EtherCON with rubber cover | MD806 | 10M 15M 20M 30M 50M |
