• 6 channels CAT6 SFTP multicore cable with EtherCON and rubber cover MMD606

MMD606 6 way Neutrik EtherCON CAT6 SFTP multicore cable with rubber cover

The  MMD606  6-way EtherCON CAT6 Multicor cable for data transmission in installations and in protected mobile operation is designed for a frequency of 500 MHz and is therefore suitable for data transmission rates of up to 10 Gbit/s over up to 100 m link length. It is primarily used for data transmission in Ethernet applications with 1000Base-T and 10GBase-T. The four data lines with a characteristic impedance of 100 Ohm each have four stranded pairs with AWG 24/stranded 7/0.19mm conductors. Double shielding (SF/UTP) reliably prevents electromagnetic interference.

We use the metal EtherCON Cat6 connectors as suitable connectors. Features such as number marking of the individual cables、 Nylon braided sleeve\ moulded plastic splitter and EtherCON with rubber cover.

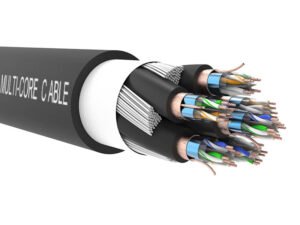

6 channels CAT6 SFTP network multi-core cable MD606

  • Flexible CAT6  long run cable SF/UTP,
  • Conductor: Stranded 7/0.19mm, AWG24
  • 10 GB Ethernet acc. to IEEE 802.3an
  • Ruggedized EtherCON connector with rubber cover
  • 6-fold multicore cable
  • Moulded plastic splitter
  • Numbered marking for identification
  • Nylon braided sleeve

Specifications

  • Connector 1 :  EtherCON cable connector with rubber cover, black
  • Connector 2 : EtherCON cable connector with rubber cover, black
  • Cable Type: 6 channels CAT6 4-pair SFTP network multicore cable, MD606

Packaging

  • Sleeve, plastic bag, paper box packing are available;
  • Special packaging on request.
