MD606 6-way CAT6 4-pair SFTP network multi-core cable

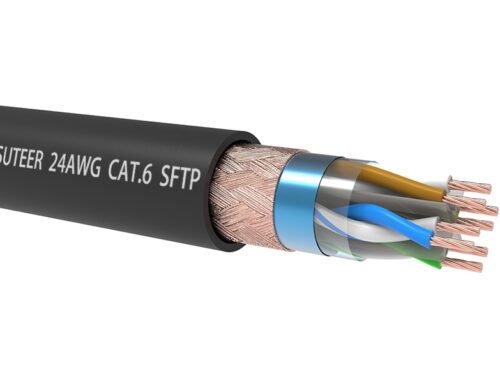

The MD606 is a 6 channels CAT6 SF/UTP network cable featuring stranded conductor and AL/PET foil +  braided shielding which is specifically designed for Horizontal Wiring in LAN.

The conductor section of the MD606 consists of 4 twisted pairs with stranded 24 AWG conductors. The AL/PET Foil and braided dual shielding offer improved immunity against noise and interference caused by external device. Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.

  • 6 channels  CAT6  SFTP  cable
  • 4 pair 7 x 0.19 mm (24 AWG)
  • OFC stranded conductor
  • PE insulation
  • PET separator
  • Al-foil inner shielding
  • 80/0.1mm OFC braided shielding
  • Reference Standard: UL Subject 444,EIA/TIA568 & ISO/IEC 11801
  • 100 Mhz performance, up to 1000Base-T

Specifications

Cable model MD406 MD606 MD806
 CAT6  Multi-core Cable
Twisting 4x CAT6 SFTP network cable 6x CAT6 SFTP network cable 8x CAT6 SFTP network cable
Taping Textile fleece Textile fleece Textile fleece
Outer jacket PVC,black, Ø19.0 PVC,black, Ø22.5 PVC,black, Ø24.5
CAT6 SFTP Cable
Conductor material OFC OFC OFC
Structure of conductor 7 x 0.19mm 7 x 0.19mm 7 x 0.19mm
Conductor section 0.23 mm2 0.23 mm2 0.23 mm2
American wire gauge 24 AWG 24 AWG 24 AWG
Insulation material PE PE PE
Number of cores 8 8 8
Insulation colours Orange/Red /Blue/Brown Orange/Red /Blue/Brown Orange/Red /Blue/Brown
Conductor twisting 4 pairs twisted 4 pairs twisted 4 pairs twisted
Shielding 1 AL/PET-foil AL/PET-foil AL/PET-foil
Shielding 2 Braided Braided Braided
Filling PE cross PE cross PE cross
Separator None None None
Outer jacket PVC PVC PVC
Outer jacket color Black matt Black matt Black matt
Outer jacket dimension Ø6.5 mm Ø6.5mm Ø6.5mm
Conductor resistance-100M ≤ 7.9 ohm ≤ 7.9 ohm ≤ 7.9 ohm
Capacity (C/C) @ 1kHz 47 pF/m 47 pF/m 47 pF/m
Characteristic impedance 100 ohm 100 ohm 100 ohm

Packaging

  • Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
  • Length: 100M
  • Lower and upper lengths according to availability. Special packaging on request.
