• Combi Neutrik PowerCON TRUE1 & 3-pin DMX hybrid cable drum HSD09N

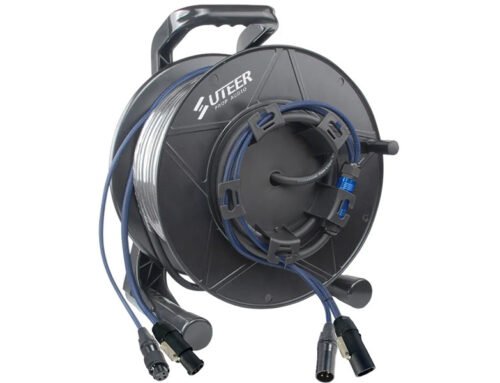

HSD09N Combi Neutrik PowerCON TRUE1 & 3-pin DMX hybrid cable drum

The HSD09N waterproof IP65  Combi PowerCON True1 and DMX hybrid Cable drum featuring high quality original Neutrik PowerCON TRUE1 waterproof IP65 & 3-pin XLR connectors waterproof IP65 and the ultra flexible 3×1.5mm2 Power & DMX signal Combination cable,  plastic cable drum for Ease in Transport.

These combi cables allow you to run power and DMX signal together. It allow you to combine DMX signal and power inside one durable, yet flexible sleeve. Each cable combines power with 3-Pin XLR for DMX Signal.

These cables are ideal for out door DMX lighting, projectors, par light,spot light,beam light,DMX strobe light,led effect light,DMX amplifier,DMX splitter and are available in several different length options.

Hybrid cable Power 3x1.5mm2 + DMX cable HC01P15

  • 3 x 48/0.2mm,  3×1.5mm2
  • 16A (20A maximum) current rating
  • Ultra flexible Rubber jacket
  • 15.0mm (Ø) outer diameter, black
  • Dual ended split length: 250mm
  • Rugged ABS + metal housing
  • 30 meter on Ø320 cable drum
  • 60 meter on Ø380 cable drum
  • Original Neutrik PowerCON TRUE1 &  3-pin XLR connector
  • Built-In Handle for Ease in Transport
  • Black color

Combi PowerCON True1 and 3-pin DMX Combination Cable wiring diagram

Specifications

  • Connector 1 : Original Neutrik PowerCON TRUE1 female + 3-pin XLR female connector
  • Connector 2 : Original Neutrik  PowerCON TRUE1 male + 3-pin XLR male connector
  • Cable Type:  Combi Power 3×1.5 & DMX Signal Hybrid Cable, HC01P15
  • Cable drum:  Ø320mm (30meter), Ø380mm (60 meter)

Packaging

  • Sleeve, plastic bag, paper box and blister packing are available;
  • Special packaging on request.
