HPCD03 Combi PowerCON TRUE1 3×2.0mm2 & CAT6 & DMX hybrid cable for lighting
The HPCD03 Combi Power & DMX & CAT6 Hybrid Cable featuring high quality PowerCON TRUE1 female/ 3-pin XLR female / etherCON to powerCON TRUE1 male / 3-pin XLR male / etherCON and the ultra flexible 3×2.0mm2 Power & DMX & CAT6 Combination cable.
These combi cables allow you to run power /ethernet and audio together. Powered speaker cables allow you to combine audio and power inside one durable, yet flexible sleeve. Each cable combines power with 3-Pin XLR for audio and etherCON for digital. These cables are ideal for DMX Lighting and are available in several different length options.
- 3 x 114/0.15mm (3×2.0mm²)
- 16A (20A maximum) current rating
- Ø5.0 24AWG double shielding professional DMX cable
- Ø6.5 stranded 24AWG CAT6 SF/UTP cable
- Ø17.5.0mm outer diameter, black
- Ø19*100 mm transparent shrink tube on both end for tag your cables easily
- 3-Pin XLR Female and Male connector, nickel
- Dual ended split length: 250mm
Specifications
- Connector 1 : PowerCON TRUE1 female + 3-Pin XLR female + etherCON
- Connector 2 : PowerCON TRUE1 male + 3-Pin XLR male + etherCON

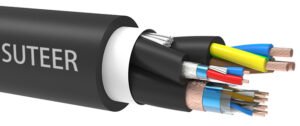

- Cable Type: Combi 3×2.0mm2 Power + 2x DMX + 2x CAT6 Hybrid Cable, HDC01CP20 or HDC01CP15
Packaging
- Sleeve, plastic bag, paper box and blister packing are available;
- Special packaging on request.
