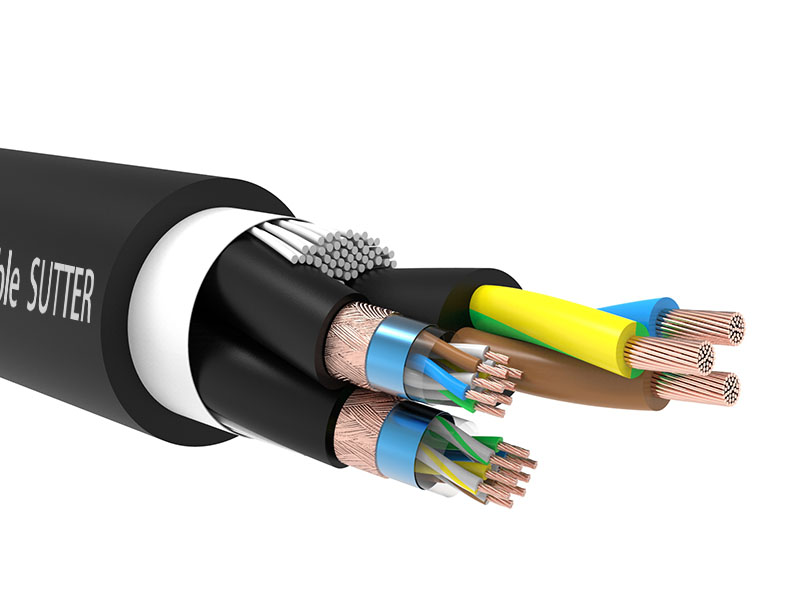

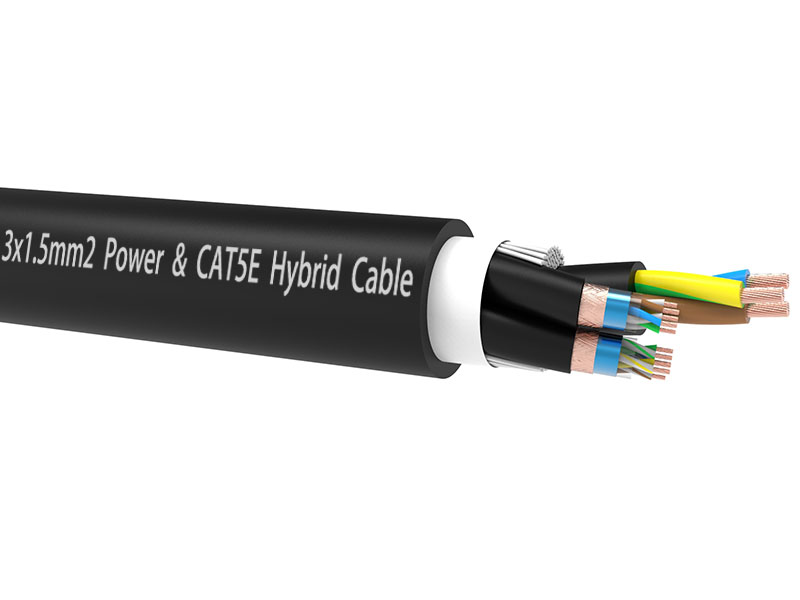

HD02P15 Hybrid cable Power 3×1.5 mm2 & 2 x CAT5E combination cable
3×1.5mm2 Power & 2x CAT5E Hybrid cable has a broad range of uses as a connector cable for modern computer-controlled equipment. Two flexible CAT5e conductors connect digital audio network components via Dante™, CobraNet® or EtherSound® or transmit DMX control signals based on ArtNet®, MA Net or Pathport protocols. The cable is also a convenient solution for applications in the IT sector requiring network connection plus power source.
- 2 x CAT5E cable: 8 x0.23 mm² (24 AWG)
- Stranded Oxygen-free copper (OFC)
- Al/Foil and Braided double shielding
- H05VV-F 3×1.5mm2 power cable
- Ultra flexible PVC outer jacket
- 17.0 mm (Ø) outer diameter
Specifications
| Cable model | HD01P15 | HD02P15 | HD02P20 |
| Hybrid Cable | |||
| Twisting | 1 CAT5E cable + 1 power cable + tracers | 2x CAT5E cable + 1 power cable + tracers | 2x CAT5E cable + 1 power cable + tracers |
| Taping | Textile fleece | Textile fleece | Textile fleece |
| Outer jacket | PVC, black,Ø16.0 | PVC,black,Ø17.0 | PVC,black,Ø18.0 |
| CAT5 Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 7 x 0.19mm | 7 x 0.19mm | 7 x 0.19mm |
| Conductor section | 0.23mm2 | 0.23 mm2 | 0.23 mm2 |
| American wire gauge | 24 AWG | 24 AWG | 24 AWG |
| Insulation material | PE | PE | PE |
| Number of cores | 8 | 8 | 8 |
| Insulation colours | Orange/Red /Blue/Brown | Orange/Red /Blue/Brown | Orange/Red /Blue/Brown |
| Conductor twisting | 4 pairs twisted | 4 pairs twisted | 4 pairs twisted |
| Shielding 1 | AL/PET-foil | AL/PET-foil | AL/PET-foil |
| Shielding 2 | 80/0.1mm BC – Braided | 80/0.1mm BC – Braided | 80/0.1mm BC – Braided |
| Filling | None | None | None |
| Separator | PET | PET | PET |
| Outer jacket | PVC | PVC | PVC |
| Outer jacket color | Black matt | Black matt | Black matt |
| Outer jacket dimension | Ø6.0 mm | Ø6.0 mm | Ø6.0 mm |
| Conductor resistance-100M | ≤ 8ohm | ≤ 8 ohm | ≤ 8 ohm |
| Capacity (C/C) ＠ 1kHz | 47 pF/m | 47 pF/m | 47 pF/m |
| Characteristic impedance | 100 ohm | 100 ohm | 100 ohm |
| Power Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 30 x 0.254mm | 30 x 0.254mm | 114 x 0.15mm |
| Conductor section | 1.5 mm2 | 1.5 mm2 | 2.0 mm2 |
| Insulation material | PVC | PVC | PVC |
| Number of cores | 3 | 3 | 3 |
| Jacket | PVC,Black,Ø7.0 | PVC,Black,Ø7.0 | PVC,Black,Ø8.0 |
| Mechanical characteristics | |||
| Temperature range | fixed installation | -25 °C to +80 °C | |
| flexible installation | -20 °C to +70 °C | ||
| Bending radius | fixed installation | 10 x outer diameter | |
| flexible installation | 12 x outer diameter | ||
Packaging
- Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
- Length: 100M
- Lower and upper lengths according to availability. Special packaging on request.
