FAC315  3-core Shielded low smoke zero halogen Fire Resistant Cable 3 x 1.5 mm2 – LSZH

This product features a 3 conductor shielded solid fire alarm resistant power cable with AL-foil/PET shielding and low smoke zero halogen ( LSZH ) jacket 3 x 1.5 mm2.

It is used for fire monitoring/detection, power limited fire alarm systems, emergency lighting, smoke alarms, smoke detectors, signaling, audio circuits, control circuits, fire protective circuits, fire alarm system and security systems where low smoke, fume and zero halogen cable is required.  The aluminum foil shielding provides protection from power frequency and radio frequency interference,

  • 3 x 1.5 mm2 (15 AWG)
  • Solid bare copper conductor
  • Insulation: silicone rubber
  • 038 mm AL-Foil/PET shielding
  • Outer jacket: Low smoke and no halogen, LSZH
  • Flame Rating: BA6387, EN50200, PH30 (Fire resistant test – Flame & shock – 30 minutes)
  • LPCB、CE、TUV、UL、ISO9001 certification

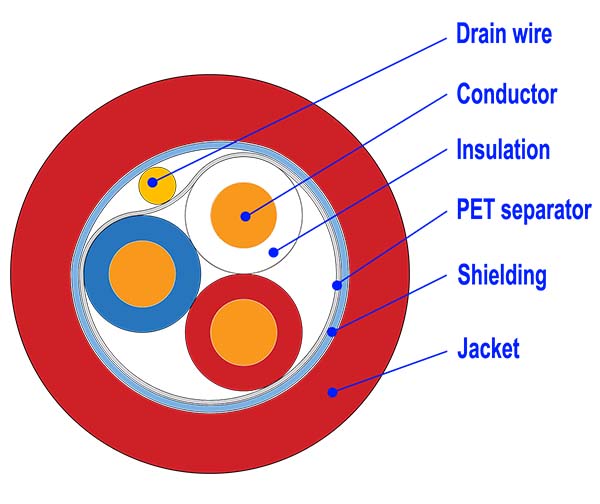

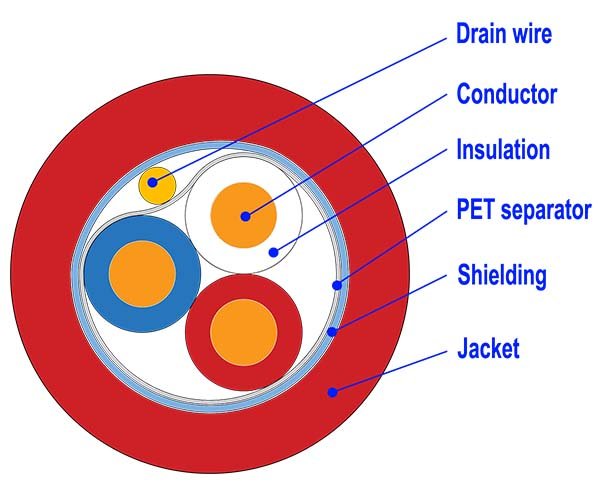

3-core fire alarm cable section

Specifications

Cable model FAC210 FAC215 FAC315
Type of cable Fire alarm cable Fire alarm cable Fire alarm cable
Conductor material Solid bare copper Solid bare copper Solid bare copper
Conductor section 1.0 mm2 1.5 mm2 1.5 mm2
American wire gauge 17 AWG 15 AWG 15 AWG
Insulation material Silicone rubber Silicone rubber Silicone rubber
Number of cores 2 2 3
Insulation colors Red / Black Red / Black Red / White/blue
Conductor twisting Yes Yes Yes
Separator PET PET PET
Drain wire 1x 0.5 mm BC 1x 0.5 mm BC 1x 0.5 mm BC
Shielding AL-Foil / PET AL-Foil / PET AL-Foil / PET
Outer jacket LSZH LSZH LSZH
Outer jacket color Red/White/Orange Red/White/Orange Red/White/Orange
Outer jacket dimension Ø6.1 mm Ø7.1 mm Ø8.0mm
Electrical characteristics
Conductor resistance-100M ≤ 2.0 ohm ≤ 1.3 ohm ≤ 1.3 ohm
Operating Voltage 300 V/500V 300 V/500V 300 V/500V
Temperature Range  -40°C ~ +90°C  -40°C ~ +90°C  -40°C ~ +90°C

Packaging

  • Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
  • Length: 100M
  • Lower and upper lengths according to availability. Special packaging on request.
