• 2x2.5mm2 Non-Sheathed PVC Insulated cable

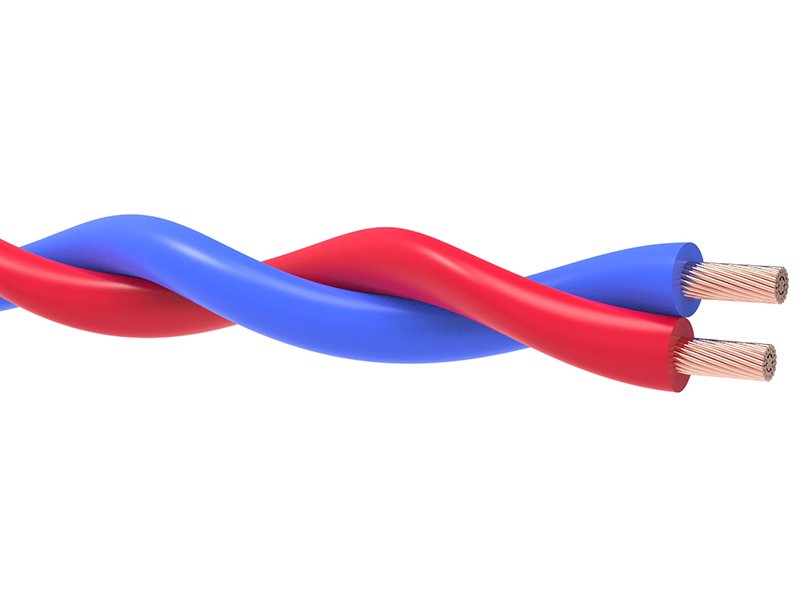

  • Twin Twisted flexible Wire 2x2.5mm2

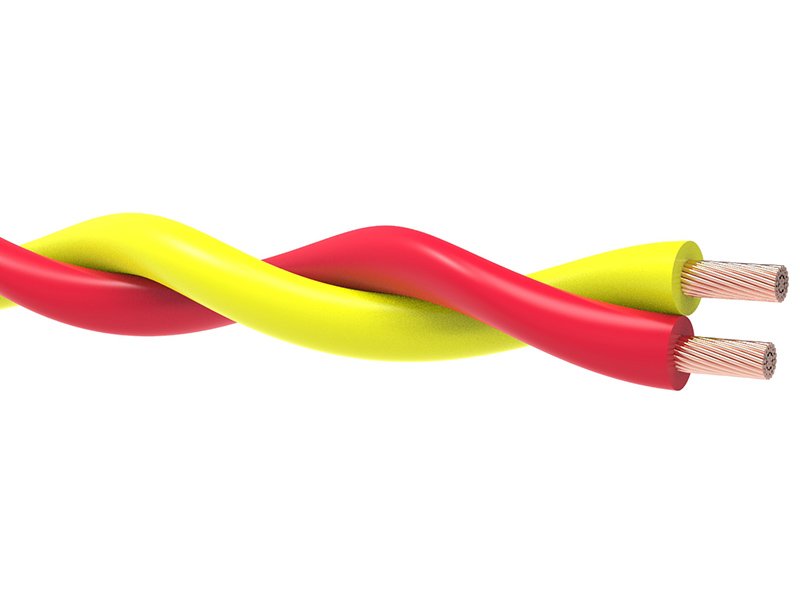

  • Twisted Pair Flexible Cable 2x2.5mm2

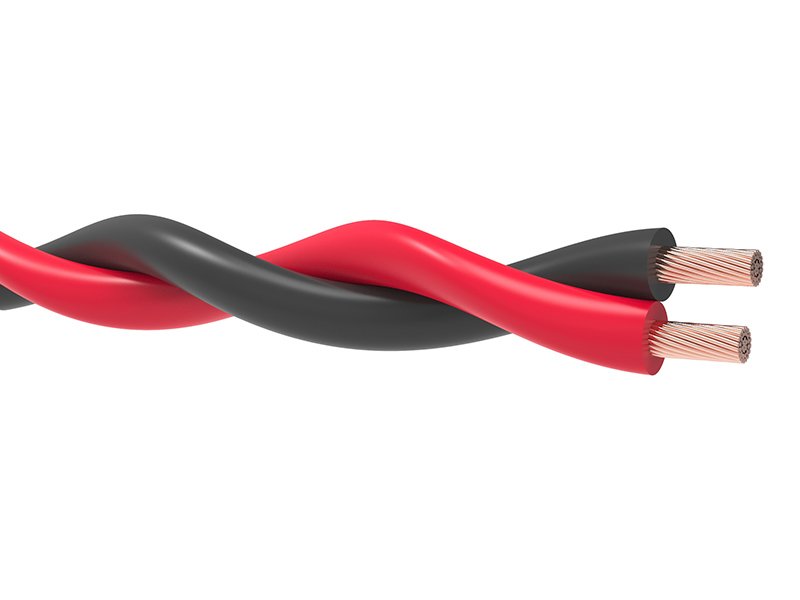

EC225 2×2.5mm2 Twisted Pair flexible cables – BS EN 50525-1

Specifications

Cable model EC220 EC225 EC215
Type of cable Non-Sheathed flexible cable Non-Sheathed flexible cable Non-Sheathed flexible cable
Conductor material Stranded bare copper Stranded bare copper Stranded bare copper
Conductor section 2.0 mm2 2.5 mm2 1.5 mm2
American wire gauge 14 AWG 13 AWG 15 AWG
Insulation material PVC compound PVC compound PVC compound
Number of cores 2 2 2
Insulation colors Red / Black Red / Black Red / Black
Insulation dimension Ø2.9 mm Ø3.1 mm Ø2.7 mm
Conductor twisting Yes Yes Yes
Outer jacket Without Without Without
Electrical characteristics
Conductor resistance-100M ≤ 0.9 ohm ≤ 0.9 ohm ≤ 1.19 ohm
Insulation Resistance-1km ≥500MΩ ≥500MΩ ≥500MΩ
Voltage Rating 300V/500V 300V/500V 300V/500V
Temperature Range  -20°C ~ +70°C  -20°C ~ +70°C  -20°C ~ +70°C
Industry Standard BS EN 50525-1 BS EN 50525-1 BS EN 50525-1

Packaging

  • Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
  • Length: 100M
  • Lower and upper lengths according to availability. Special packaging on request.
