EC210 2×1.0mm2 Electric cables – BS EN 50525

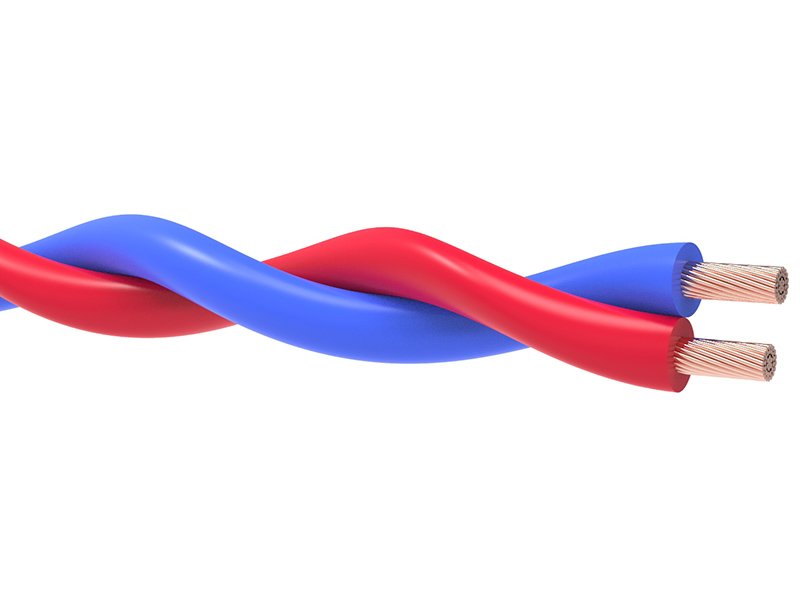

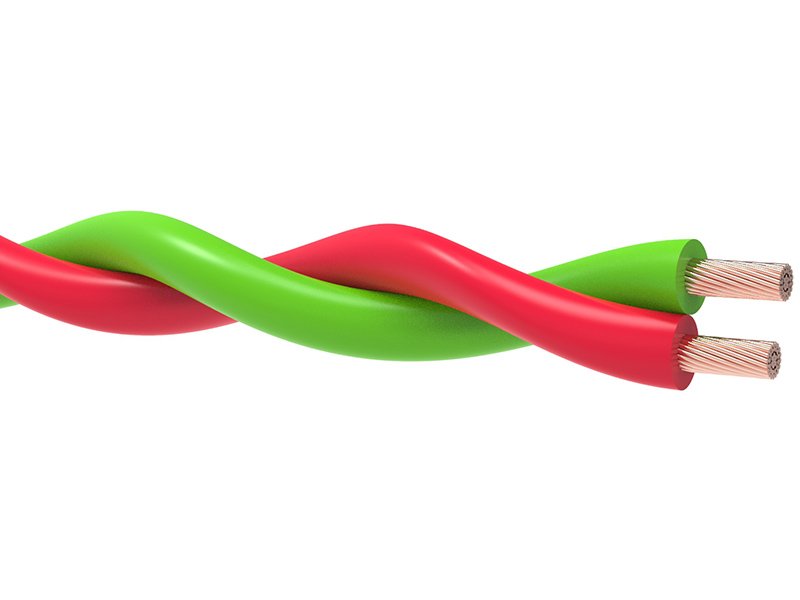

This BS EN 50525 – Electric cables features a 1 twisted pair 2 x 1.0 mm2 Non-Sheathed flexible cables with OFC conductor and High quality PVC compound insulation.
It is used for Public address system installationsAudio system interconnections.
- 2 x 1.0 mm (17 AWG)
- Conductor: 32/0.2 mm, OFC
- High quality PVC compound insulation
- Industry Standard: BS EN 50525-1
- Voltage Rating: 300V/500V
- Public address system installationsAudio system interconnections
Specifications
Cable model | EC209 | EC210 | EC215 |
Type of cable | Non-Sheathed flexible cable | Non-Sheathed flexible cable | Non-Sheathed flexible cable |
Conductor material | Stranded bare copper | Stranded bare copper | Stranded bare copper |
Conductor section | 1.0 mm2 | 1.0 mm2 | 1.5 mm2 |
American wire gauge | 17 AWG | 17 AWG | 15 AWG |
Insulation material | PVC compound | PVC compound | PVC compound |
Number of cores | 2 | 2 | 2 |
Insulation colors | Red / Black | Red / Black | Red / Black |
Insulation dimension | Ø2.3 mm | Ø2.3 mm | Ø2.7 mm |
Conductor twisting | Yes | Yes | Yes |
Outer jacket | Without | Without | Without |
Electrical characteristics | |||
Conductor resistance-100M | ≤ 1.9 ohm | ≤ 1.78 ohm | ≤ 1.19 ohm |
Insulation Resistance-1km | ≥500MΩ | ≥500MΩ | ≥500MΩ |
Voltage Rating | 300V/500V | 300V/500V | 300V/500V |
Temperature Range | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C |
Industry Standard | BS EN 50525-1 | BS EN 50525-1 | BS EN 50525-1 |
Packaging
- Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
- Length: 500M
- Lower and upper lengths according to availability. Special packaging on request.
