DL10 2-core DMX Lighting AES/EBU Data Cable
The DL10 cables are designed for digital signal transmission according to the DMX and AES-EBU standards.

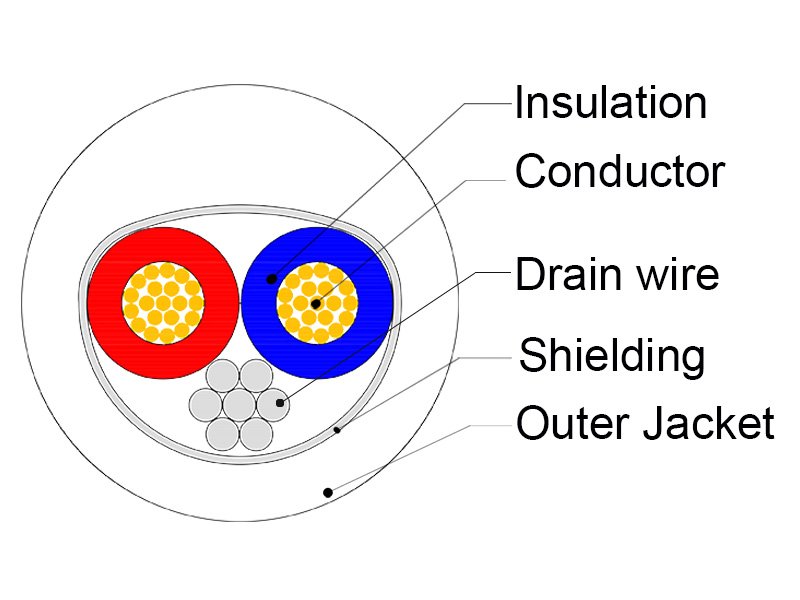

It is a cable for digital signal transmission with a characteristic impedance of 110 Ohm, consisting of two conductors with a section of 0.23 mm². They are both surrounded with an Aluminum foil PET, ensuring the best shielding of the cable, resulting in an excellent protection against interference of all kinds of electromagnetic fields, produced by dimmers, electric motors, power cables and many other electromagnetic interference sources.
- 2 x 0.22 mm² (24 AWG)
- Stranded Oxygen-free copper
- Independent drain wire
- AL/PET Foil and Drain wire
- Ultra flexible PVC outer jacket
- 110 Ω characteristic impedance
- 4.0 mm (Ø) outer diameter
Specifications
| Cable model | DL10 | DL11 | DL12 |
| Type of cable | 110 Ω DMX Cable | 110 Ω DMX Cable | 110 Ω DMX Cable |
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 20 x 0.12mm | 20 x 0.12mm | 20 x 0.12mm |
| Conductor section | 0.23 mm2 | 0.23 mm2 | 0.23 mm2 |
| American wire gauge | 24 AWG | 24 AWG | 24 AWG |
| Insulation material | PE | PE | PE |
| Insulation color | Red / White | Red / White | Red / Blue / Black / Green |
| Number of cores | 2 | 2 | 4 |
| Filler | No | Cotton yarn | Cotton yarn |
| Shielding 1 | AL/PET Foil | AL/PET Foil | AL/PET Foil |
| Shielding 2 | 7 x 0.15mm TC Drain wire | 16 x 6 x 0.12mm TC Braided | 16 x 8 x 0.12mm TC Braided |
| Outer Jacket | PVC, Black | PVC, Black | PVC, Black |
| Outer Jacket O.D | Ø4.0 | Ø6.0 | Ø8.0 |
| Electrical characteristics | |||
| Conductor resistance-1000M | ≤ 79 ohm | ≤ 79 ohm | ≤ 79 ohm |
| Characteristic impedance | 110 Ω | 110 Ω | 110 Ω |
| Capacity (C/C) ＠ 1kHz | 60 pF/m | 48 pF/m | 48 pF/m |
| Mechanical characteristics | |||
| Temperature range | fixed installation | -40 °C to +80 °C | |
| flexible installation | -20 °C to +60 °C | ||
| Bending radius | fixed installation | 6 x outer diameter | |
| flexible installation | 8 x outer diameter | ||
Packaging
- Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging,
- Special packaging on request.
- Lower and upper lengths according to availability
- 100M / Roll, 400M / Carton
