Project Description

  • CAT.6 feed through round panel mount coupler DAD17
  • CAT.6 pass through round panel mount extender DAD17

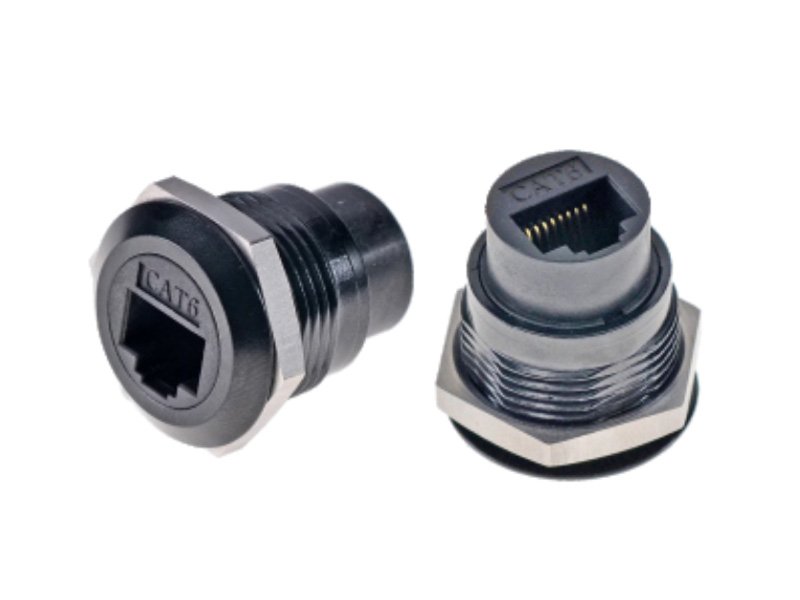

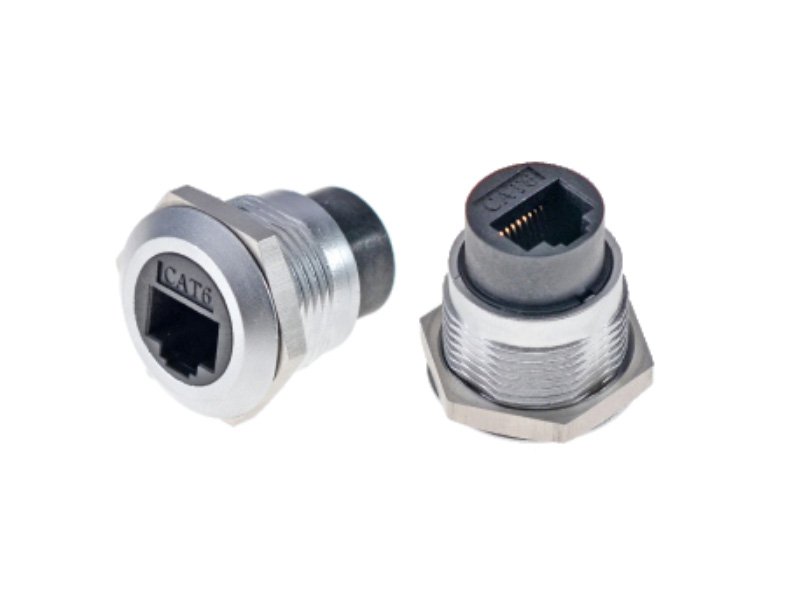

DAD17  CAT.6 feed through round panel mount coupler

Application / Description

This RJ45 coupler Series is a ruggedized and Round panel mount RJ45 connector system, optimized for proaudio, video and lighting network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The Round-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Features

  • Accommodates rugged etherCON NE8MC-1 or any standard RJ45 plug
  • Round panel mount
  • Unshielding female RJ45
  • Metal housing, black & nickel
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard

Specifications

Model DAD13 DAD14 DAD15 DAD17
Shape Round Round D-type Round
Type USB 2.0 A coupler USB 3.0 A coupler USB 3.0 A coupler CAT.6 coupler
Adapter Female to Female Female to Female Female to Female Female to Female
Shell die casted zinc alloy die casted zinc alloy die casted zinc alloy die casted zinc alloy
Shell plating Nickel & Black Nickel & Black Nickel & Black Nickel & Black
Contact Nickle plated Nickle plated Nickle plated Gold plated
Packaging Plastic bag Plastic bag Plastic bag Plastic bag

Packaging

  • Plastic bag, paper box and blister packing are available;
  • Special packaging on request.
