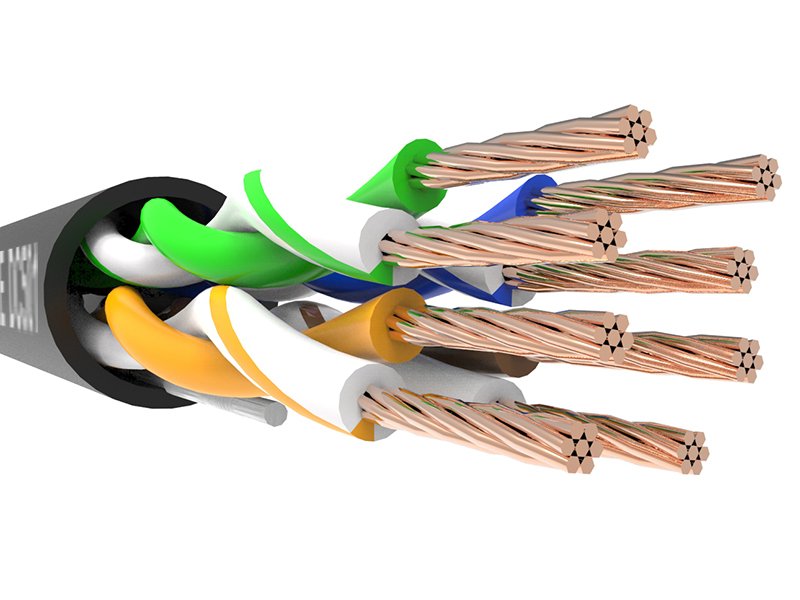

  • 4 pair twisted Cat5e 24AWG Flexible UTP networking patch cable DC501
  • Cat5e 24AWG flexible UTP network patch cable cross section

DC501 4 Pair 24AWG CAT5e Flexible UTP Networking Patch Cable – Stranded Bare Copper

The DC501 is a CAT5e networking cable featuring stranded conductor and a flexible outer jacket which is specifically designed for Horizontal Wiring in LAN.

The conductor section of the DC501 consists of 4 twisted pairs with stranded copper 24 AWG conductors.  The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch. Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.

  • Stranded Oxygen-free copper (OFC)
  • 24 AWG (7 * 0.2mm) thin and dense stranded conductors
  • 5.2 mm (Ø) outer diameter
  • Reference Standard: UL Subject 444,EIA/TIA568 & ISO/IEC 11801
  • 100 Mhz performance, up to 1000Base-T

Cat5e 24AWG flexible UTP network patch cable cross section

Specifications

Cable model DC501 DC502 DC503 DC504
Type of cable CAT5e UTP Network cable CAT5e UTP Network cable CAT5e FTP Network cable CAT5e STP Network cable
Conductor material Bare stranded copper Solid bare copper Solid bare copper Solid bare copper
Structure of conductor 7 x 0.2mm 1 x 0.51mm 1 x 0.51mm 1 x 0.51mm
Conductor section 0.22 mm2 0.20 mm2 0.20 mm2 0.20 mm2
American wire gauge 24 AWG 24 AWG 24 AWG 24 AWG
Insulation material HDPE Ø0.98 HDPE Ø0.98 HDPE Ø0.98 HDPE Ø0.98
Insulation color Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ;  Brown / White & Brown Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ;  Brown / White & Brown Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ;  Brown / White & Brown Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ;  Brown / White & Brown
Number of cores 8 (4 pairs) 8 (4 pairs) 8 (4 pairs) 8 (4 pairs)
Shielding No No AL/PET foil AL/PET foil + AL/Mg wire braided
Outer Jacket PVC, Black PVC, Black PVC, Black PVC, Black
Outer Jacket O.D Ø5.2 Ø5.2 Ø6.0 Ø6.2
Electrical characteristics
Conductor resistance-1000M ≤ 87 ohm ≤ 90 ohm ≤ 90 ohm ≤ 90 ohm
Rated voltage 300 V 300 V 300 V 300 V
Characteristic impedance 100 Ω ± 15 100 Ω ± 15 100 Ω ± 15 100 Ω ± 15
Operating capacity 48 pF/m 48 pF/m 48 pF/m 48 pF/m
Propagation delay 45 ns/100m @ 1-100 MHz 45 ns/100m @ 1-100 MHz 45 ns/100m @ 1-100 MHz 45 ns/100m @ 1-100 MHz
Delay skew 0.25 nsec/m 0.25 nsec/m 0.25 nsec/m 0.25 nsec/m
Mechanical characteristics
Tensile strength 100 N 100 N 100 N 100 N
Temperature range fixed installation  -40 °C to +80 °C
flexible installation  -20 °C  to +70 °C
Bending radius fixed installation 8 x outer diameter
flexible installation 10 x outer diameter

Packaging

  • Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging;
  • Length: 305M
  • Lower and upper lengths according to availability. Special packaging on request.
