  • BMD02 5-Pin Din Plug To 3.5mm stereo mini Jack plug Audio Cable

BMD02 5-Pin DIN MIDI male to 3.5mm stereo Jack  Audio Cable

Basic series audio link cableThe BMD02 Basic series DIN 5-pin male to 3.5mm stereo mini jack audio cable featuring high quality DIN 5-pin  and 3.5mm mini jack connectors,  and the ultra flexible microphone cable.

It is suitable for carrying MIDI signals between all devices with MIDI inputs such as PCs, Keyboards, Synths, and sound modules.

2-core stereo Mic bulk cable SMC20

  • Oxygen free copper (OFC)
  • 2C*7/0.15mm + 32/0.12mm (Spiral shield)
  • PE insulation
  • Ultra flexible PVC jacket
  • 4.0 mm (Ø) outer diameter, black
  • DIN 5-pin male plug, Nickel
  • 1/8″ stereo mini jack plug, nickel

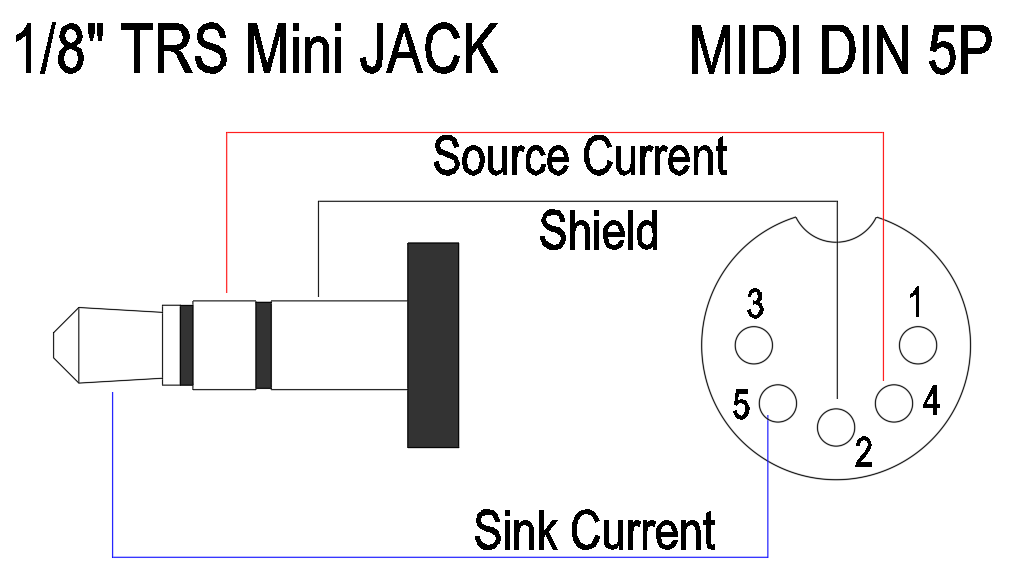

  • Both wiring diagram Type-A (Tip → 5（sink）,Ring → 4（source）, Sleeve → 2（shield）and Type-B (Tip → 4（source）Ring → 5（sink）Sleeve → 2（shield）) are available

TYPE-B

MIDI 5 Pin Din Plug To 3.5mm mini Jack Audio Cable wiring diagram

TYPE-A

3.5mm TRS to MIDI 5Pin cable type A

Specifications

  • Connector 1 : DIN 5-pin male plug, nickel,  Moulded Connector
  • Connector 2 : 3.5mm stereo mini jack plug, nickel, Moulded Connector
  • Cable Type:  26AWG low noise professional microphone cable, spiral shielding, SMC20

Packaging

  • Sleeve, plastic bag, paper box and blister packing are available;
  • Special packaging on request.
