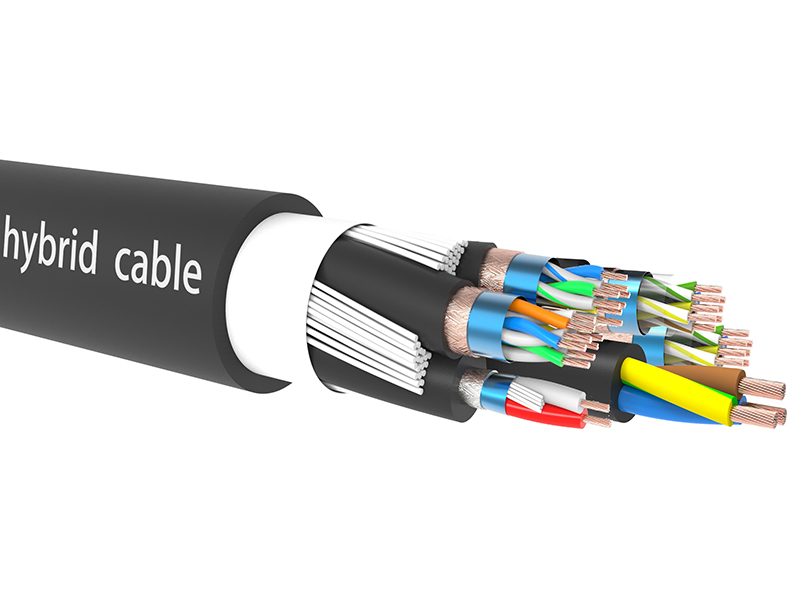

HDC04CP15 Combi 3×1.5mm2 power & DMX & 4x CAT6 hybrid cable
This hybrid cable 3×1.5mm2 power cable & 1x DMX & 4x CAT6 SFTP combination cable has a broad range of uses as a connector cable for modern computer-controlled equipment. One or two flexible CAT6 conductors connect digital audio network components via Dante™, CobraNet® or EtherSound® or transmit DMX control signals based on ArtNet®, MA Net or Pathport protocols. The cable is also a convenient solution for applications in the IT sector requiring network connection plus power source.
- 3 x 1.5mm2 power cable
- 1 x 2-core double shieldingDMX cable
- 4 x stranded CAT6 SFTP network cable: 8x 7/ 0.19mm (24AWG)
- Stranded Oxygen-free copper (OFC)
- Ultra flexible PVC outer jacket
- 22.0mm (Ø) outer diameter
- Compliant with TIA/EIA568 ＆ IEC/ISO11801
Specifications
| Cable model | HDC01CP15 | HDC04CP15 | HDC04CP25 |
| Hybrid Cable | |||
| Twisting | 1x CAT6 + 1x DMX + 1x power cable | 4x CAT6 + 1 x DMX + 1 x power cable | 4x CAT6 + 1 x DMX + 1 x power cable |
| Taping | Textile fleece | Textile fleece | |
| Outer jacket | PVC,black, Ø17 | PVC,black, Ø22 | PVC,black, Ø22.5 |
| DMX Cable / CAT6 SFTP Cable |
|||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 7x 0.19mm | 7x 0.19mm | 7x 0.19mm |
| Conductor section | 0.23 mm2 | 0.23 mm2 | 0.23mm2 |
| American wire gauge | 24 AWG | 24 AWG | 24 AWG |
| Insulation material | PE | PE | PE |
| Number of cores | 8 | 8 | 8 |
| Insulation colours | Orange/Red /Blue/Brown | Orange/Red /Blue/Brown | Orange/Red /Blue/Brown |
| Conductor twisting | 4 pairs twisted | 4 pairs twisted | 4 pairs twisted |
| Shielding 1 | AL/PET-foil | AL/PET-foil | AL/PET-foil |
| Shielding 2 | Drain wire + BC Braided | Drain wire + BC Braided | Drain wire + BC Braided |
| Filling | Cotton yarn | Cotton yarn | Cotton yarn |
| Separator | None | None | None |
| Outer jacket | PVC | PVC | PVC |
| Outer jacket color | Black matt | Black matt | Black matt |
| Outer jacket dimension | Ø6.5 mm | Ø6.5 mm | Ø6.5 mm |
| Conductor resistance-100M | ≤ 14 ohm | ≤ 14 ohm | ≤ 14 ohm |
| Capacity (C/C) ＠ 1kHz | 47 pF/m | 47 pF/m | 47 pF/m |
| Characteristic impedance | 100 ohm | 100 ohm | 100 ohm |
| Power Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 30 x 0.254mm | 30 x 0.254mm | 50 x 0.254mm |
| Conductor section | 1.5 mm2 | 1.5 mm2 | 2.5 mm2 |
| Insulation material | PVC | PVC | PVC |
| Number of cores | 3 | 3 | 3 |
| Jacket | PVC,Black, Ø7.0 | PVC,Black, Ø7.0 | PVC,Black, Ø8.0 |
| Mechanical characteristics | |||
| Temperature range | fixed installation | -25 °C to +80 °C | |
| flexible installation | -20 °C to +70 °C | ||
| Bending radius | fixed installation | 10 x outer diameter | |
| flexible installation | 12 x outer diameter | ||
Packaging
- Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
- Length: 100M
- Lower and upper lengths according to availability. Special packaging on request.
