SMC240 Thick 20AWG Conductors Recording Studio Microphone Cable – Braided Shielding

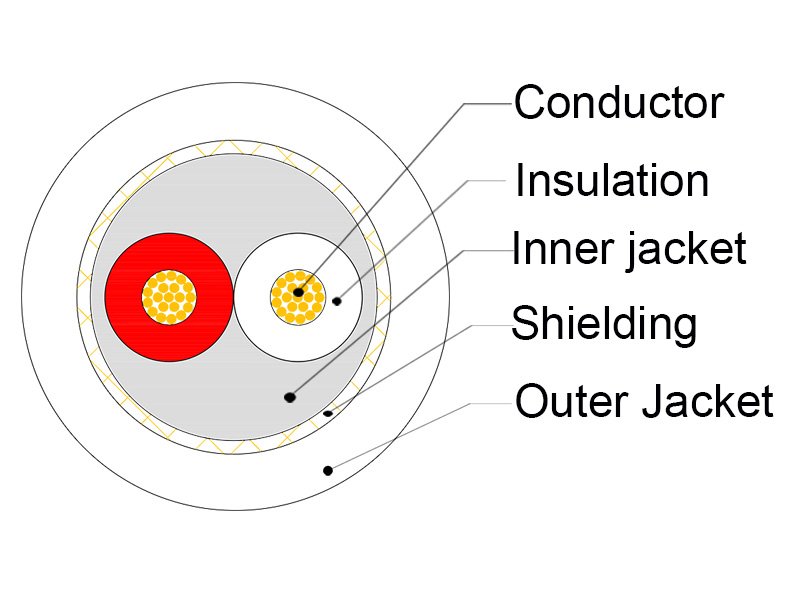

The SMC240 is a high-quality microphone cable with PVC inner jacket and ultra flexible PVC outer jacket. Semi-conductive PVC and braided shielding for optimum noise rejection, conductors built using OFC (oxygen free copper).
This twin conductor cable can be used to transfer either balanced or stereo audio signals. Suited for use in recording studios and live performance where interference noise rejection is important.
A braided ground shield gives superior rejection to unwanted RF noise ensuring optimum signal quality. Having a greater shield coverage does mean braided cables are less flexible than regular spiral shield cables. Avoid rolling these cables tightly to prevent cable damage.
- 2 x 0.5 mm² (20 AWG)
- Stranded Oxygen-free copper
- PVC inner jacket
- Ultra-high density braided shielding
- Ultra flexible PVC outer jacket
- 6.8 mm (Ø) outer diameter
Specifications
Construction | Electrical characteristics | |||
Cable model | SMC240 | Conductor resistance-100M | ≤ 4 ohm | |
Type of cable | Studio Microphone cable | Capacity (C/C) @ 1kHz | 65 pF/m | |
Conductor material | Bare stranded copper | Mechanical characteristics | ||
Structure of conductor | 28 x 0.15 mm | Temperature range | fixed installation: -40 °C to +80 °C | |
Conductor section | 0.5 mm2 | flexible installation: -25 °C to +60 °C | ||
American wire gauge | 20 AWG | Bending radius | fixed installation: 6 x outer diameter | |
Insulation material | PE | flexible installation: 8 x outer diameter | ||
Number of cores | 2 | |||
Insulation colours | Red / Blue | |||
Inner Jacket | PVC | |||
Shielding | 16 x 8 x 0.12 mm BC | |||
Filling | Cotton yarn | |||
Separator | None | |||
Outer jacket | Flexible PVC | |||
Outer jacket color | Black matt | |||
Outer jacket dimension | Ø6.8 mm |
Packaging
Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging,
Lower and upper lengths according to availability. Special packaging on request.
