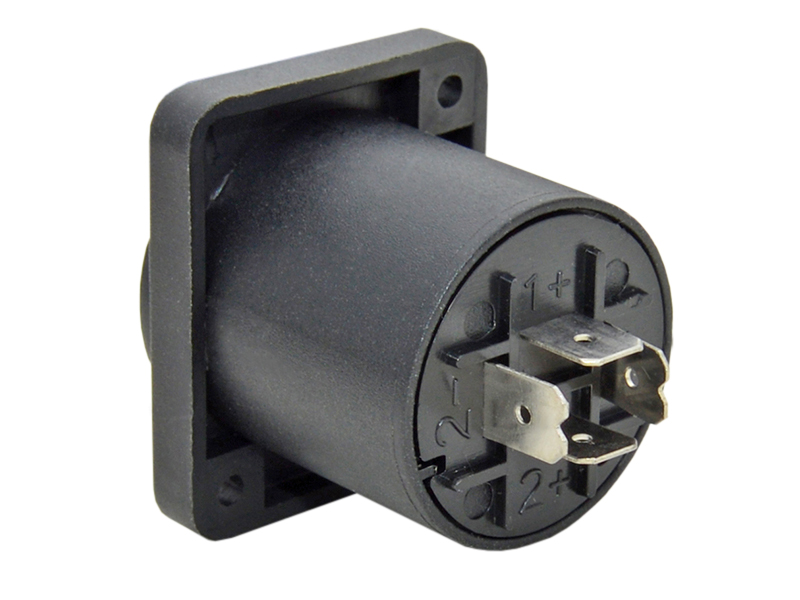

SPK06T 4-pole Panel Mount Speaker Chassis Connector – Thru hole
Application / Description
This is a single 4-pin male Speakon chassis connector with thru hole, designed to be mounted on a speaker, power amplifier or patch bay. Used to connect either 2 or 4 core speaker level signals with panel mount Speakon connector. The speaker chassis connector for loudspeaker / amplifier applications.
Features
- 4-Pin female SpeakON chassis connector
- Standard current rating 30 A rms
- Secure locking system
- Metal insert in locking area
- Cable solder connection type
- Nickel plated contact
- Thru holes
- Used for power amplifiers and loudspeakers
- RoHS Compliant
Specifications
| Model | SPK05 | SPK06 | SPK06T | NL4MP |
| Type | 4-pole Loudspeaker Cable Connector | 4-pole Loudspeaker Chassis Connector | 4-pole Loudspeaker Chassis Connector | Neutrik 4-pole Loudspeaker Chassis Connector |
| Shell | PA6 + 30% GR | PA6 + 30% GR | PA6 + 30% GR | PA6 + 30% GR |
| Contact coating | nickel plated | nickel plated | nickel plated | nickel plated |
| Pole number | 4 | 4 | 4 | 4 |
| Type of contact | Screw type terminals | Soldering | Soldering | Soldering |
| Rated current per contact | 30A | 30A | 40A | 30A |
| Rated insulation voltage | 250V ac | 250V ac | 250V ac | 250V ac |
| Cable O.D | Ø5.5-Ø12 mm | |||
| Packaging | Plastic bag | Plastic bag | Plastic bag | Plastic bag |
| Packaging dimension | 390*220*240 (125 pcs) | 390*220*240 (250pcs) | 390*220*240 (125 pcs) | 390*220*240 (250 pcs) |
Packaging
- Plastic bag, paper box and blister packing are available;
- Special packaging on request.
