  • SPC007 Power Twist Extension Cable

SPC007 Power Twist Extension Cable – H05VV-F 3G1.5mm2

Basic series audio link cableThe SPC007 Power Twist Extension Cable featuring high quality PowerCON connectors and the 3G1.5mm2 ultra flexible PVC power cable

It is designed to connect electrical devices equipped with PowerCON socket. When properly installed, these connectors forge a secure connection that prevents accidental disconnects due to tripping over cables or bumping of equipment. It is ideal for use with professional lighting equipment、 daisy-chaining multiple devices or high definition displays.

3-core flexible power cable

  • 3 x 48/0.2mm (1.5mm²)
  • 13A (16A maximum) current rating
  • Ultra flexible Rubber jacket
  • 8.0mm (Ø) outer diameter, black
  • Cable type: H05VV-F  3G1.5mm2
  • PowerCON connector, Nickel
  • 60 mm transparent shrink sleeve for tag your cables easily

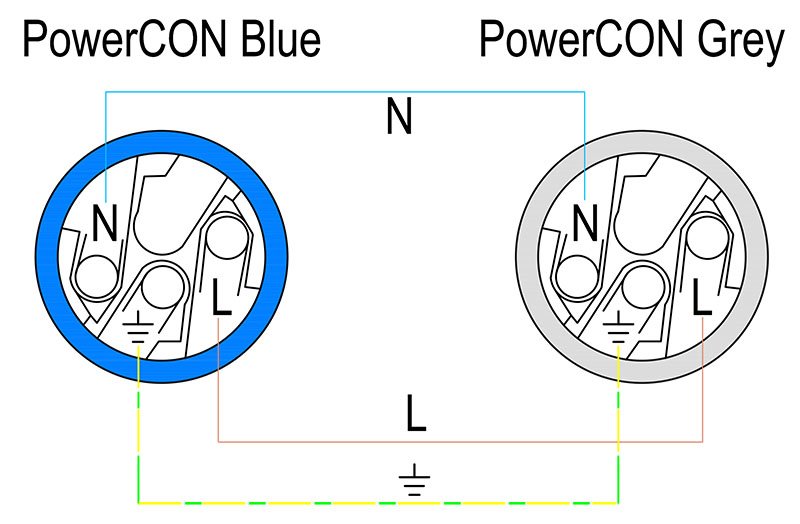

Power-Twist-Link-Cable-PowerCON-connector

Specifications

  • Connector 1 :  PowerCON Blue,  Power-in,  PC3FA
  • Connector 2 : PowerCON Grey,  Power-out,  PC3FB
  • Cable Type:  H05VV-F 3G1.5mm² PVC power cable, PV3G15

Packaging

  • Sleeve, plastic bag, paper box and blister packing are available;
  • Special packaging on request.
