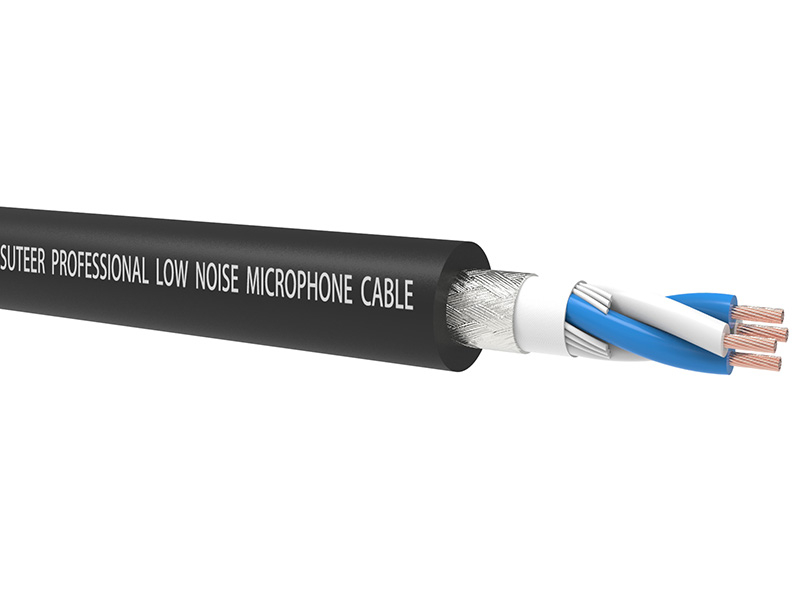

SMC251 Star-Quad Microphone Cable  – Braided Shielding

The SMC251 is a high-quality star-quad microphone cable with an ultra flexible outer jacket. A tight spiral shield and star-quad construction for optimum noise rejection, thick conductors built using OFC (oxygen free copper).  This twin conductor cable can be used to transfer either balanced or stereo audio signals.

Suited for use professional stage & studio applications.  such as Microphones \ Portable Applications \ Audio Patch Cable \ PA Systems.

  • 4 x 0.23 mm² (24 AWG)
  • Stranded Oxygen-free copper
  • Star-quad construction
  • Ultra-high density braided shielding
  • available in seven different colours
  • Ultra flexible PVC outer jacket
  • 6.5 mm (Ø) outer diameter are available

Braided shielding Star Quad Microphone cable Cross section

Specifications

Construction   Electrical characteristics
Cable model SMC251 Conductor resistance-100M ≤ 7.9 ohm
Type of cable Microphone cable Capacity (C/C) @ 1kHz 52 pF/m
Conductor material Bare stranded copper Mechanical characteristics
Structure of conductor 20 x 0.12mm Temperature range fixed installation  -20 °C to +70 °C
Conductor section 0.23 mm2 flexible installation  -15 °C to +60 °C
American wire gauge 24 AWG Bending radius fixed installation 8 x outer diameter
Insulation material PE flexible installation 10 x outer diameter
Insulation colors Red / Blue / Green / Black
Number of cores 4
Conductor twisting Yes
Shielding 16 x 6/0.12mm BC – Spiral
Filling Cotton yarn
Separator textile fleece
Outer jacket Flexible PVC
Outer jacket color Black matt
Outer jacket dimension Ø6.5 mm

Packaging

  • Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging;
  • Length: 100M
  • Lower and upper lengths according to availability. Special packaging on request.
