SMC211 Professional Dual Shielding Twisted Pair Microphone Cable
The SMC211 is a high-quality microphone cable with an ultra flexible outer jacket. Semi-conductive PVC and braided shielding for optimum noise rejection, conductors built using OFC (oxygen free copper).
This twin conductor cable can be used to transfer either balanced or stereo audio signals. Suited for use in recording studios and live performance where interference noise rejection is important.
- 2 x 0.22 mm² (24 AWG)
- Stranded Oxygen-free copper
- Semi-conductive PVC shielding
- Ultra-high density braided shielding
- available in seven different colours
- Ultra flexible PVC outer jacket
- 6.8 mm (Ø) outer diameter
Specifications

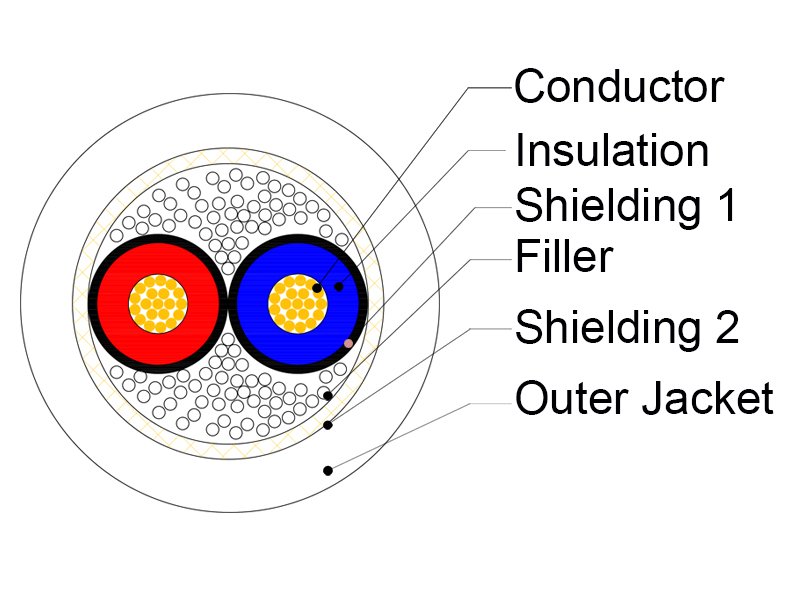

| Construction | Electrical characteristics | |||
| Cable model | SMC211 | Conductor resistance-100M | ≤ 7.9 ohm | |
| Type of cable | Balanced Microphone cable | Capacity (C/C) ＠ 1kHz | 56 pF/m | |
| Conductor material | Bare stranded copper | Mechanical characteristics | ||
| Structure of conductor | 20 x 0.12mm | Temperature range | fixed installation: -40 °C to +80 °C | |
| Conductor section | 0.23 mm2 | flexible installation: -25 °C to +60 °C | ||
| American wire gauge | 24 AWG | Bending radius | fixed installation: 6 x outer diameter | |
| Insulation material | PE | flexible installation: 8 x outer diameter | ||
| Number of cores | 2 | |||
| Insulation colours | Red / Blue | |||
| Conductor twisting | Yes | |||
| Shielding | 16 x 6 x 0.12 mm BC – Braided + Semi-conductive PVC | |||
| Filling | Cotton yarn | |||
| Separator | Textile fleece | |||
| Outer jacket | Flexible PVC | |||
| Outer jacket color | Black matt | |||
| Outer jacket dimension | Ø6.8 mm | |||
Packaging
- Plastic Reel,Plywood Reel,Cardboard Reel and Shrink-plastic packaging are available
- Special packaging on request.
- 100M / Roll, 400M / Carton
