Project Description

  • SJJ012A Prime series 6.35 mm mono right-angle JACK Guitar Lead cable Amphenol

SJJ012A Prime Series Guitar Lead Cable with  Amphonel 1/4″ Right-angle JACK  to 1/4″ Straight JACK

The Prime series balanced XLR microphone cable featuring high quality Neutrik AG NC3FXX and NC3MXX connectors and the ultra flexible microphone cable

The SJJ012A Prime series unbalanced 1/4″ mono straight JACK to 1/4″ mono right-angle JACK guitar lead featuring high quality Amphenol ACPM-GN and ACPM-RN connectors and the ultra flexible instrument cableIt comes in different lengths from 0.5 meters to 15 meters, providing solutions for all applications.

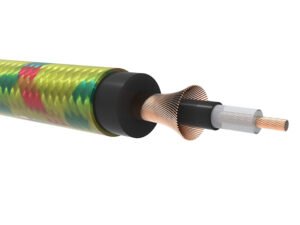

21AWG low noise interconnect cable with vintage style

CABLE

  • Oxygen free copper (OFC)
  • 21 AWG thin and dense stranded conductors
  • 1C*30/0.12mm (conductor)+ 96/0.12mm (spiral shield)
  • Semi-conductive PVC + ultra-high density spiral shielding
  • Ultra flexible PVC jacket
  • 6.5 mm (Ø) outer diameter, black
  • Amphenol JACK connector, Nickel
  • 60 mm transparent shrink sleeve for tag your cables easily

6.35 mm mono JACK to 6.35 mm mono JACK unbalanced Wiring diagram

Specifications

  • Connector 1 :  1/4″ mono straight JACK plug, satin nickel,  ACPM-GN / Amphenol
  • Connector 2 : 1/4″ mono right-angle JACK plug, satin nickel,  ACPM-RN / Amphenol
  • Cable Type:  21 AWG unbalanced instrument cable, spiral shielding, SGC117

Packaging

  • Sleeve, Plastic bag, paper box and blister packing are available;
  • Special packaging on request.
