SGC114  24AWG Braided Shielding Low Noise Guitar / Instrument Cable

The SGC114 is a high-quality instrument cable with an ultra flexible outer jacket. Conductive carbon plastic shield and spiral shield gives an excellent protection against interference of all kinds, such as electromagnetic fields caused by dimmers, motors or power cables. This conductors built using 24WG OFC (oxygen free copper).

This guitar cable is suited for all kinds of applications where reliable unbalanced signal transmission is needed.

  • 1 x 0.22 mm² (24 AWG)
  • Stranded Oxygen-free copper (OFC)
  • Conductive carbon plastic shield
  • Ultra-high density braided shielding
  • available in seven different colours
  • Ultra flexible PVC outer jacket
  • 6.0 mm (Ø) outer diameter are available

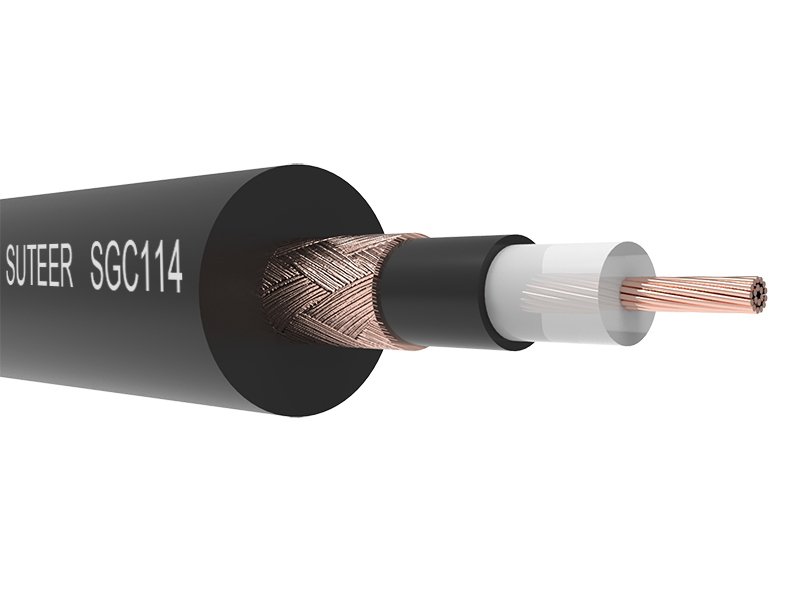

24AWG braided shielding instrument cable Cross section

Specifications

Construction Electrical characteristics
Cable model SGC114 Conductor resistance-100M ≤ 7.9 ohm
Type of cable Instrument cable Capacity (C/S) @ 1kHz 118 pF/m
Conductor material Bare stranded copper Mechanical characteristics
Structure of conductor 28 x 0.1mm Temperature range fixed installation:  -25 °C to +80 °C
Conductor section 0.23 mm2 flexible installation:  -20 °C to +70 °C
American wire gauge 24 AWG Bending radius fixed installation: 6 x outer diameter
Insulation material PE flexible installation: 8 x outer diameter
Number of cores 1
Insulation colors Transparent
Shielding Conductive carbon plastic  +        128 x 0.1mm BC – Braided
Shielding factor 99%
Separator None
Outer jacket Flexible PVC
Outer jacket color Black matt
Outer jacket dimension Ø6.0 mm

Packaging

  • Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging,
  • Special packaging on request.
  • Lower and upper lengths according to availability
  • 100M / Roll, 400M / Carton
