  • USB 3.0 A D-type chassis coupler extender DAD15

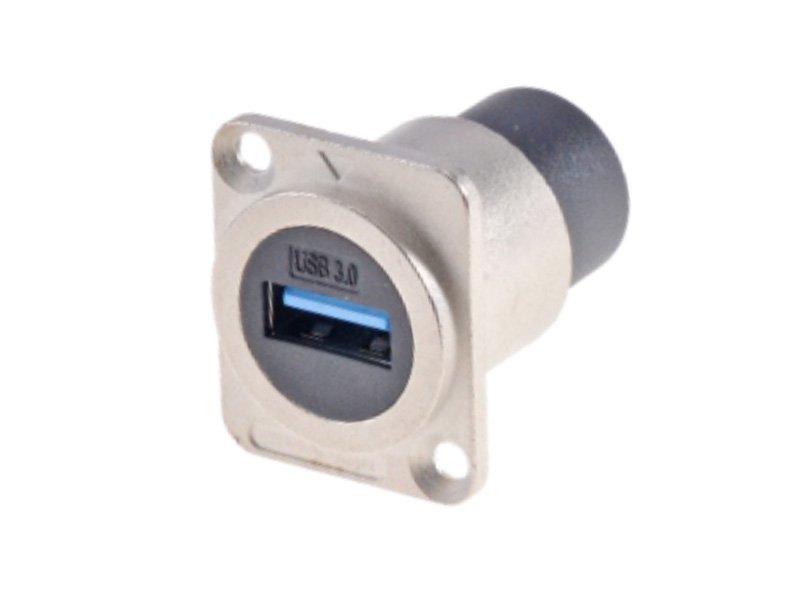

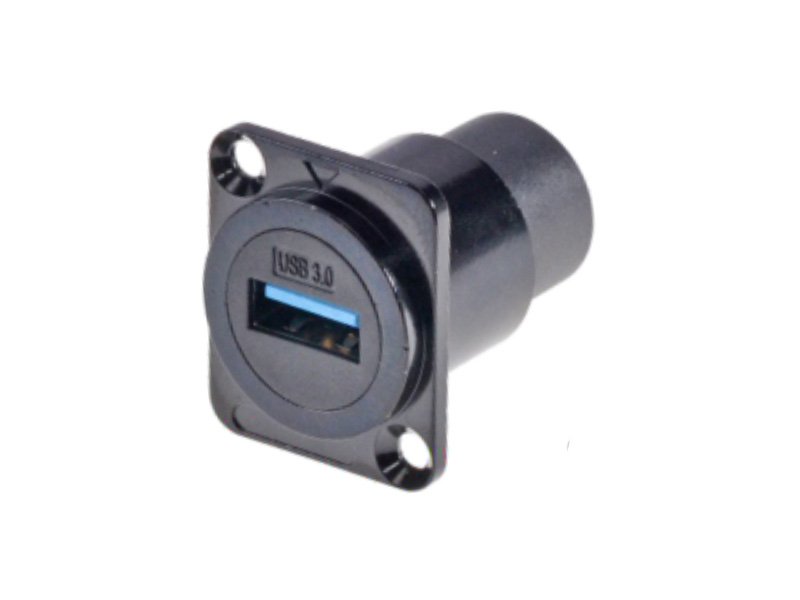

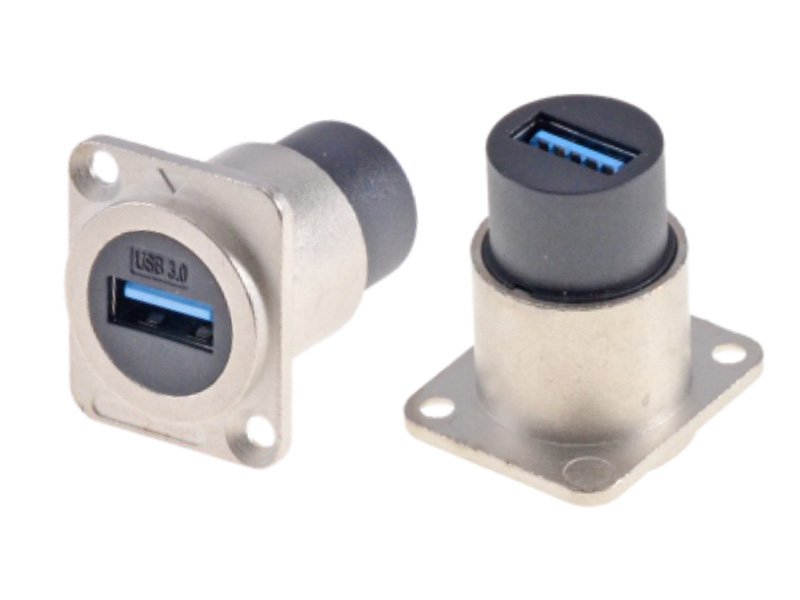

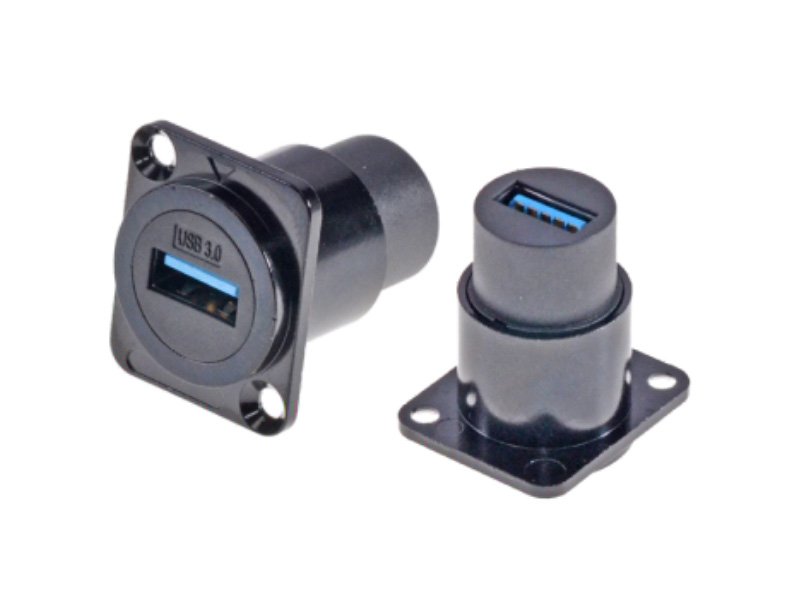

DAD15  USB 3.0 A  female D-type chassis coupler extender

Application / Description

This is a High quality USB 3.0 D-type panel mount adapter gender changer used to extends your existing USB cable for a longer length. USB-A is the standard USB connector found on every computer.

Features

  • USB 3.0 speed
  • Connector 1 : USB 3.0 Type-A female connector
  • Connector 2 : USB 3.0 Type-A female connector
  • D-type panel mounting
  • Easy installation without software driver required
  • Power Rating: 2A / 30V
  • USB Connections: Power + Data
  • Nickel plated

Specifications

Model DAD13 DAD14 DAD15 DAD17
Shape Round Round D-type Round
Type USB 2.0 A coupler USB 3.0 A coupler USB 3.0 A coupler CAT.6 coupler
Adapter Female to Female Female to Female Female to Female Female to Female
Shell die casted zinc alloy die casted zinc alloy die casted zinc alloy die casted zinc alloy
Shell plating Nickel & Black Nickel & Black Nickel & Black Nickel & Black
Contact Nickle plated Nickle plated Nickle plated Nickle plated
Packaging Plastic bag Plastic bag Plastic bag Plastic bag

Packaging

  • Plastic bag, paper box and blister packing are available;
  • Special packaging on request.
