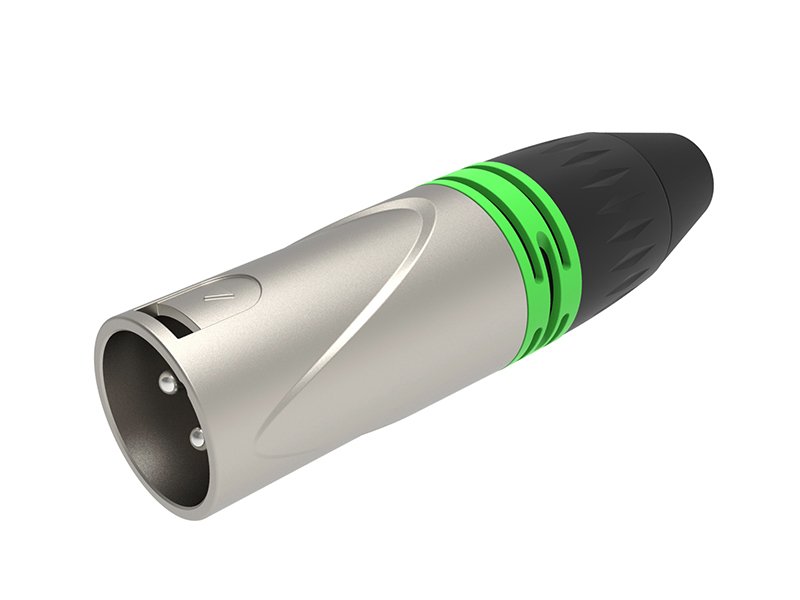

XLR3M001 3-Pin XLR Male Plug cable connector
Application / Description
This is a single male XLR connector used to transfer a balanced audio signal via 3 pins through an audio cable. Often used to terminate mic cables.
Features
- Male connector with improved solid metal latch which is larger and easier to handle
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with Polyvinyl chloride gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Rugged zinc diecast shell, long life and dependable
- Internal thread on shell is well protected against any damage
- RoHS Compliant
Specifications
| Model | XLR3F001 | XLR3F001B | XLR3M001 | XLR3M001B |
| type | 3 pole female XLR | 3 pole female XLR | 3 pole male XLR | 3 pole male XLR |
| Shell | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy |
| Shell plating | nickel plated | black plated | nickel plated | black plated |
| Contact coating | silver plated | silver plated | silver plated | silver plated |
| Pole number | 3 | 3 | 3 | 3 |
| Type of contact | Soldering | Soldering | Soldering | Soldering |
| Cable O.D | Ø4-Ø6.5 mm | Ø4-Ø6.5 mm | Ø4-Ø6.5 mm | Ø4-Ø6.5 mm |
| Packaging | Plastic bag | Plastic bag | Plastic bag | Plastic bag |
| Carton Packaging
Dimension (mm) |
390*220*240 (500 ps) | 390*220*240 (500 ps) | 390*220*240 (500 ps) | 390*220*240 (500 ps) |
Packaging
- Plastic bag, paper box and blister packing are available;
- Special packaging on request.
