Project Description

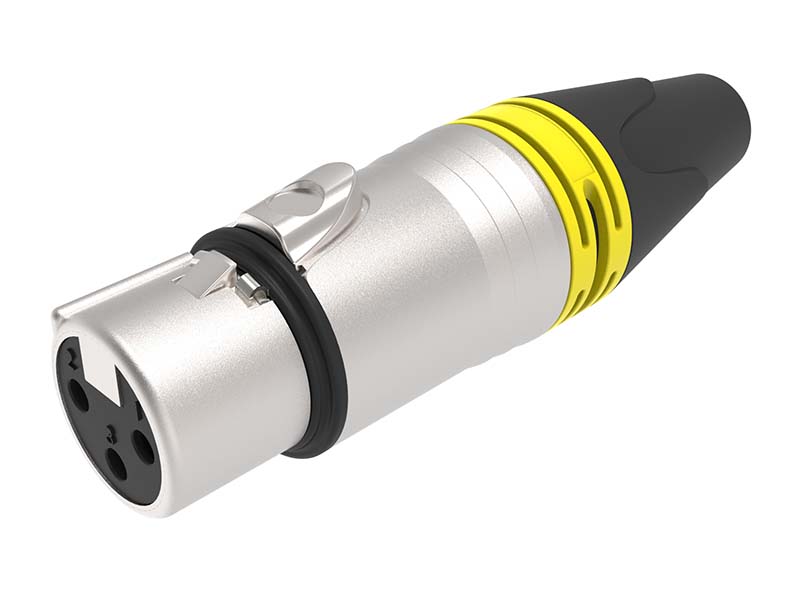

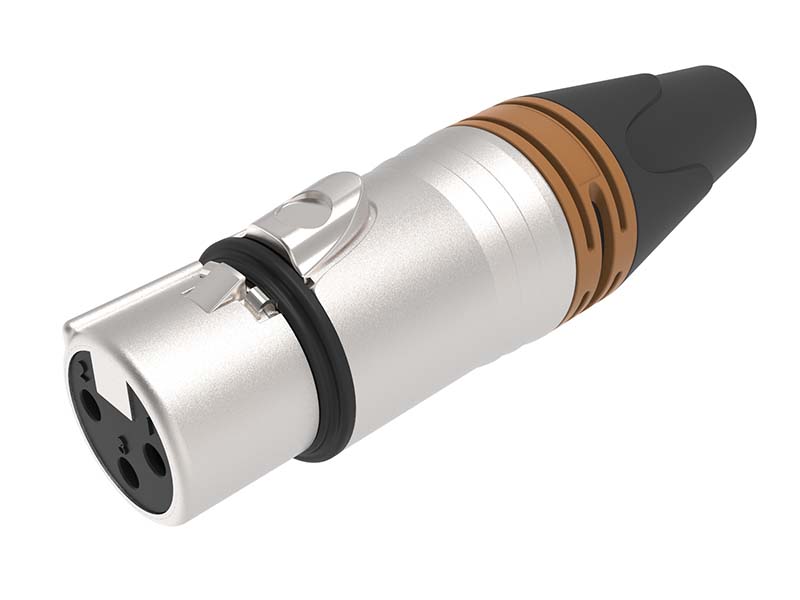

XLR3F008 3-pin XLR Female Cable Connector Nickel
Application / Description
This is a single neutrik shape female XLR cable connector used to transfer a balanced audio signal via 3 pins through an audio cable. Often used to terminate microphone cables.
Features
- Neutrik type
- 3-pole Female connector
- Internal latch replaces older style window
- POM strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with Polyvinyl chloride gland gives high protection to cable bending stresses
- All rugged zinc diecast housing, long life and dependable
- Color ring
- Nickel plated
Specifications
| Model | XLR3F008 | XLR3M008 | XLR3F004 | XLR3M004 |
| Type | 3 pole female XLR | 3 pole male XLR | 3 pole female XLR | 3 pole male XLR |
| Shell | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy | die casted zinc alloy |
| Shell plating | nickel plated | nickel plated | nickel plated | nickel plated |
| Contact coating | silver plated | silver plated | silver plated | silver plated |
| Pole number | 3 | 3 | 3 | 3 |
| Type of contact | Soldering | Soldering | Soldering | Soldering |
| Cable O.D | Ø4-Ø6.8 mm | Ø4-Ø6.8 mm | Ø4-Ø6.8 mm | Ø4-Ø6.8 mm |
| Packaging | Plastic bag | Plastic bag | Plastic bag | Plastic bag |
| Carton PackagingDimension (mm) | 390*220*240 (500 ps) | 390*220*240 (500 ps) | 390*220*240 (500 ps) | 390*220*240 (500 ps) |
Packaging
- Plastic bag, paper box and blister packing are available;
- Special packaging on request.
